M008he Powertear High Tear Strength Tester - China

M008HE PowerTear™ High Strength Tear Strength Tester Can be used for a variety of tests on thin and thick specimens ·Paper ·cardboard ·plastic ·textile ·Non-woven Lever clamps allow operators to quickly and easily mount samples Full color touch screen controller The new color touch screen makes machine operation more convenient.

And enhanced unit conversion and results traceability will greatly enhance customers Experience during testing.

Tear strength results can be displayed in mN, cN, N, g, kg, oz and lb.

The sample number and pendulum in use are also displayed.

The microprocessor controller can store 100 test results.

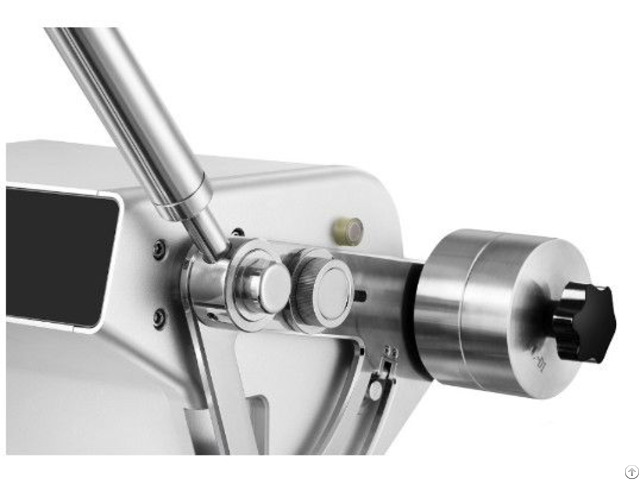

E-type pendulum Includes 8, 16, 32 and 64 N pendulums and weights (optional 128N pendulum set available) With the optional "E" pendulum set, the strength can be increased to 128 N, the Twice the strength of many other devices of the same type.

safety Designed for operator safety · Double button release ·Large base The electromagnetic brake can stop the pendulum after the test reliability Precision rotary encoder and release bearing provide repeatability for testing Also provides greater accuracy accuracy Designed to provide the most accurate results possible Ability to adjust the pendulum to zero balance, providing more accurate results Adjustable control of the pendulum balance enables the user to precisely find the center of gravity and change it as needed The large base ensures the stability of the instrument during testing adaptability Test weights and calibration weights can be safely stored in the acrylic stand 8, 16, 32 and 64 N weights available · Optional 128 N test and calibration weights available Feature The PowerTear can be connected to a computer via USB for testing and data storage, and records can be searched.

The software allows entering: ·Batch information ·Remark ·sample discription Ability to include or exclude specific test results custom report Allows the user to select the desired calculation result, generate and save it as a Microsoft Excel format file.
