Textile Moisture Permeability Tester - China

textile moisture permeability tester 1 - The instrument has heating, humidification, cooling, and dehumidification functions.

It uses an LED temperature and humidity controller to directly display temperature and humidity, with high accuracy and sensitive response.

2 - Adopt the European century-old Taikang fully enclosed condensing unit, and each unit has been tested item by item through the European Taikang computer network.

3 - The main refrigeration accessories and control devices are imported original parts.

The heater uses a plate electric heater, which has a fast temperature rise and a long life.

It adopts saturated steam for humidification and uniform humidification.

4 - In addition to the standard moisture permeability test cup, different specifications of the moisture permeability test cup can be customized to suit different test methods.

Applicable standards:

GB/T12704.1; GB/T12704.2; GB1037; ASTM E96; JIS L1099; BS7209

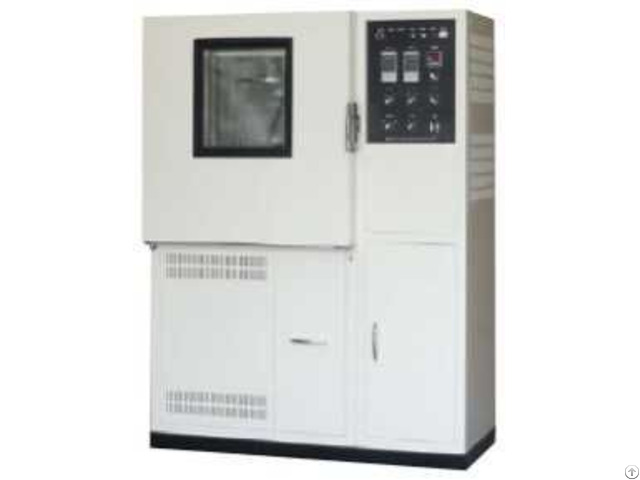

YG501N textile moisture permeability tester performance introduction(图1)

technical parameter:

1 - Temperature control range: 0～＋100℃

2 - Temperature control accuracy: ±0.5℃

3 - Humidity control range: 30～98%RH

4 - Humidity control accuracy: ±2℃~ -3%RH

5 - Moisture permeability area: 2826 mm2 (GB) 4536 mm2 (ASTM) 3217mm2 (BS)

6 - Circulating air flow speed: 0.3~3m/s digital setting

7 - Turntable speed: 10 revolutions/min

8 - Power supply: AC220V, 5KW

9 - Working room size: 500×500×600mm (L×W×H)

10 - Dimensions: 950×1000×1620 mm (L×W×H)
