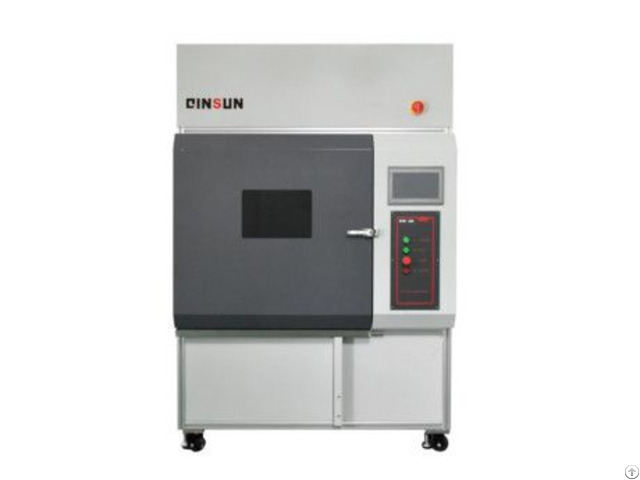

High and low temperature tester

The high and low temperature circulation box can be used to assess and determine the adaptability of electrical, electronic, automotive electrical, materials and other products for storage and use under high and low temperature environmental conditions.

It is suitable for schools, factories, military industries, research institutes, and other units.

High and low temperature test box box structure:

The box body is processed and formed by CNC machine tools, with beautiful appearance and non-reaction handle, which is easy to operate.

The inner tank of the box is made of imported high-grade stainless steel (SUS304) mirror panel, and the outer tank of the box is sprayed with A3 steel plate, which increases the appearance texture and cleanliness.

The large observation window is equipped with lighting to keep the inside of the box bright, and the tempered glass embedded in the heating body is used to clearly observe the situation in the box at any time.

Equipped with a test hole with a diameter of 50mm, which can be used for external test power lines or signal lines

High and low temperature test chamber control system:

The temperature control adopts the Japanese RKC digital display touch button, touch setting, digital and direct display, and the temperature control output power is calculated by the P.I.D microcomputer to achieve high-precision and high-efficiency power consumption.

If an error occurs, a warning number will be provided.

(Optional imported programmable control instrument)

Optional printer

The refrigerator adopts the French original "Taikang" fully hermetic compressor.

The filter drier, refrigerant flow window, repair valve, oil separator, solenoid valve and liquid storage tank are all imported original parts

Refrigeration system adopts unit or binary low temperature loop system design.

The multi-blade blower is used for strong air circulation, avoiding any dead angle, and making the temperature distribution in the test area uniform.

The air duct is designed to circulate the air out and return the air, and the air pressure and air speed meet the test standards, and the temperature can be stabilized quickly at the moment of opening the door.

Heating, cooling, and complete independence of the system can improve efficiency, reduce test costs, increase service life, and reduce failure rates.

Overall equipment overtemperature; overall equipment under-phase/reverse phase; overall equipment overload; refrigeration unit overpressure; overall equipment timing;

Others include leakage, running instructions, automatic shutdown after fault alarm and other protections.

The high and low temperature test chamber meets the standard

This product meets the requirements of national standards such as GB 2423.1--2001, GB 2423.2--2001, and other relevant standards.

It is designed and manufactured in strict accordance with the technical conditions of GB 10592--89 high and low temperature test chamber, and various high and low temperature environmental tests can be made according to military standard test requirements GJB150.3-86, GJB150.4-86, and non-standard.
