Rotary dry and wet rubbing color fastness tester AATCC Dry and Wet Rubbing Color Fastness Tester is a testing instrument of the American Association of Textile Chemists and dyers.

The crocking tester tests the ability of a fabric to transfer color from the surface of a material to other materials under dry and wet rubbing conditions.

In addition to performing color transfer tests, the instrument can perform abrasion, dry/wet rubbing, flex, chalking, dry cleaning, grinding, and other tests.

Standard pressure and motion are used for the specimen to ensure that the condition of the specimen is controlled and reproducible.

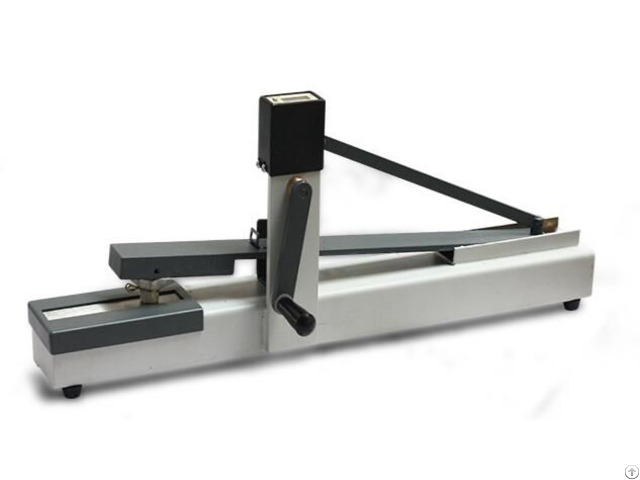

There are three models of electric and manual, rotary rubbing fastness testers: traditional manual rubbing colorfastness tester CSI238AA, electric rubbing colorfastness tester CSI238BB, manual rotary rubbing colorfastness tester CSI238EE.

The Colorfastness to Crock Tester complies with the following test standards, as well as other industry and organizational test methods.

CSI238AA/CSI238BB

CSI238CC: CSI238EE:

AATCC 8 AATCC 116

AATCC 165 ISO 105-X16

ASTM F1329 EN ISO 105-X12 ISO 105-D02 JIS K6328 JIS L0849 JIS L1084 The instruction manual of AATCC rubbing color fastness tester includes operating procedures and safety measures.

Please read this manual carefully before installing and using the instrument to ensure the safety of use and the accuracy of test results.

We strongly recommend users to read this operation manual, and do not take any responsibility for the consequences of operating the AATCC rubbing color fastness tester without strictly following this instruction manual.

technical parameter Model CSI238AA (manual) physical Length: 60cm (23.6 inches) Width: 16.5cm (6.5 inches) Height: 20.3cm (8 inches) Shipping Weight: 13kCSI (13lb) Model CSI238BB CSI238CC (with water tie) (electric) physical Length: 60cm (23.6 inches) for indoor use Width: 22.2cm (8.75 inches) Height: up to 2000m Height: 27cm (10.6 inches) Ambient temperature: 16～29℃ (60～85℉) Relative humidity: 80% Structure: cold rolled steel sheet AC power supply voltage fluctuation: rated voltage ±10% Surface treatment: gray paint Overvoltage level: Ⅱ Pollution level: 2 Shipping weight: 13kCSI (13lb) power supply: 115V, 60Hz, 1.5A 230V, 50Hz, 0.75A Model CSI238E (Rotary) physical Length: 26cm (10.3 inches) Width: 15cm (6 inches) Height: 25.4cm (10 inches) Shipping Weight: 5.4kCSI (12lb) Floor space: During instrument operation and routine maintenance, each model covers an area of ​​about 90 × 60 cm (3 × 2 ft).

Adjust stroke length The friction path or stroke length of the friction head back and forth can be adjusted to 50, 76 or 104 mm (2, 3 or 4 inches) to suit the size of the specimen.

The adjustment of the stroke length is shown in Figure 2, and is carried out according to the following steps.

Unplug the instrument hand from the power supply.

Loosen the guard's thumb screw on the reciprocating arm and raise the guard.

This procedure does not require removing the screws.

Use a flat-blade screwdriver to connect the drive arm to the crank screw.

Pay attention to the positioning of the washers, the washers maintain a certain distance from the drive arm to the crank.

Move the drive arm to the proper position and then tighten the screw.

Reinstall the shield and tighten the thumbscrews.

Setup and reset of digital counters CSI238E operation method The CSI238E is a manually operated instrument with a reciprocating rotating test head, which is mainly used to test small areas of printing on fabrics.

Using a standard weight, a friction head with a diameter of 16 mm was brought into contact with the surface of the sample and applied a pressure of 11.1 N to it.

When the operator turns the handle in the same direction, the friction head first rotates 1.125 circles clockwise and then counterclockwise.

The specimen is held in place during the test by applying pressure and installing sandpaper on the base of the instrument.

The upper end of the instrument can be tilted upward along the base to facilitate the installation and removal of samples.

CSI238AA and CSI238BB optional We offer a full line of interchangeable friction heads and friction arms to meet the test methods of various industries and organizations.

Common friction heads and friction arms are listed below.

If you need the following accessories or other AATCC rubbing color fastness tester accessories and spare parts, please contact our customer service department.

ps: (WLJCDM809)
