Textile Uv Aging Test Box Testing Equipment - China

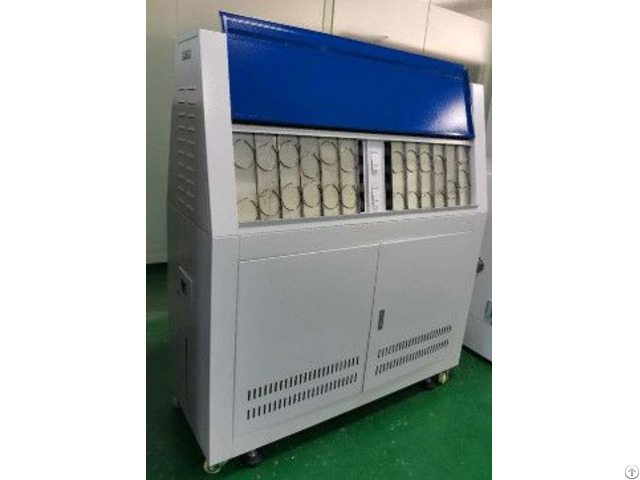

QINSUN Textile UV Aging Test Chamber UV intensity testing equipment can also be used for light resistance and light aging experiments of various colored textiles, leather, artificial leather, plastics, building materials, chemicals, electrical appliances and other materials.

By setting parameters such as ultraviolet light intensity, temperature, condensation environment, and spraying in the test box, the simulated natural conditions required for the experiment are provided to test the color fastness of colored textiles and dyes to light and weather; automatic monitoring and compensation of light energy ; Temperature feedback control; blackboard temperature loop control and other multi-point adjustment functions.

Conforms to US, European and international standards.

technical parameter:

1 - Temperature range: RT 10℃~70℃

2 - Temperature uniformity: ±2°C

3 - Temperature fluctuation: ±0.5℃

4 - The center distance of the lamp tube: 65-70MM

5 - Lamp tube: L=500/40W, 6 pieces

6 - The distance between the test product and the center of the lamp tube: 55MM

7 - Effective irradiation area: 600*500*750MM

8 - Ultraviolet wavelength: UVA range is 200-400nm

9 - Test time: 0~999H (adjustable)

10 - Temperature control method: PID self-tuning SSR control QINSUN Textile UV Aging Test Chamber UV intensity detection equipment control system:

1 - The black aluminum plate is used to connect the temperature sensor, and the black plate temperature instrument is used to control the heating, so the temperature is more stable.

2 - The radiometer probe is fixed and does not need to be loaded and unloaded each time.

3 - The radiation amount adopts a special ultraviolet radiation meter with high precision display and measurement.

4 - The irradiance is not more than 0.68W/m2.

5 - Accessories: stainless steel sample holder: 48 pieces.

6 - Temperature and humidity control method: balanced temperature and humidity control (BTHC).

7 - Controller: Siemens touch screen program controller.

8 - Irradiance control: UV-B ultraviolet radiation meter, (UV-A ultraviolet radiation meter is optional), can set and measure the intensity of ultraviolet radiation and calculate the cumulative value of radiation work through cumulative time.

9 - Exposure methods: moisture condensation exposure, light radiation exposure.

10 - Temperature controller: Intelligent digital display temperature controller is adopted, with high precision and stable control.

11 - Time controller: It adopts programmable controller, and the light and condensation time can be automatically converted.

The control time can be set arbitrarily within one thousand hours.

12 - Water supply mode: automatic water supply and replenishment function.

13 - Communication: Two-way connection (RS585 communication interface), friendly interface (optional).

14 - Safety protection: Leakage circuit breaker for power supply, overload and short circuit alarm for control circuit, over temperature alarm, water shortage protection.

(11-16)

ps: (WLJCDM809)
