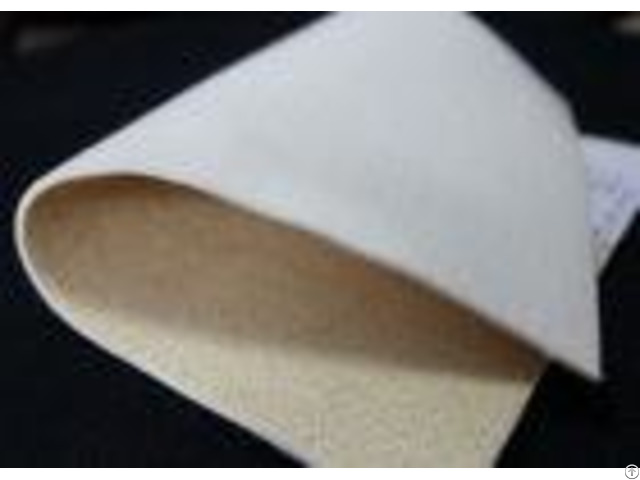

Air Filtration Nomex Needle Felt Fiber Synthetic Filter Fabric 100 Percent Polyester - China

Air Filtration media high temperature fabric cloth Nomex needle filter fabric Quick Detail: Normal temperature flue gas filtration felt 100% polyester 1.5mm to 3mm thickness Weight from 350 to 800s Width 2.1 meter maximum High porosity, good air permeability Good price quality Laminated compound, grads counterchange Description: High efficiency of removing dust particle Easy clear and long useful life Smooth surface after Singeing, Heat setting, Calendering.

Specifications: - - - - Material | Acrylic fiber | Weight(g/m2) | 500 | Thickness(mm) | 2.0 | Air permeability (L/m2/s) | 150-300 | Tensile strength(N/520cm) | Warp | 1200 | Weft | 1300 | Tensile Elongation() | Warp | <20 | Weft | <45 | Working temperature() | Continues | 140 | Instant | 160 | Hydrolyzation resistant | Excellent | Alkali resistant | Excellent | Acid resistant | Excellent | Stability of water solution | Good | Finishing Treatment | Singeing, calendering | - - - - Notices: Filter material for high temperature 1 - materials available: pps (Ryton / polyphenylene sulfide), Nomes, Glass fiber etc.

2 - working temperature: no lower than 160 degree celsius.

3 - specialties: strong acid resistance, good stability, high filtering efficiency 4 - techniques used: needle punching & other stability, high filtering efficiency - - - - Article Name | Nomex needled felt | Ingredients | Fiber | 100% Nomex | Scrim | 100% Nomex | Weight | g/m2 | 500 | Thickness | mm | 22 | Density | g/m | 0.24 | Permeability | L/dm2 - min | 150 | Tensile breaking strength(N/5cm) | Warp | 800 | Weft | 1000 | Elongation @200N/5cm | Warp | <5 | Weft | <5 | Maximum shrink of 90 mins | Temperature(C) | 250 | % | 1 | Service Temperature(C) | Continuous | 200 | Instant | 240 | Finishing | Singeing, calendaring | - - - - Applications: Low-oxidizability garbage incinerator, metal melting, fly ash of steel plants, coal-fir boiler and chemical industry, collection fo blast-furnace gas of kiln forehead, kiln backend and steel works, high temperature exhaust of electric furnace, exhaust of refractory brick kiln and the coking exharst in the industries of asphalt mixing, non-ferrous smelting, ceramics, glass and cement.
