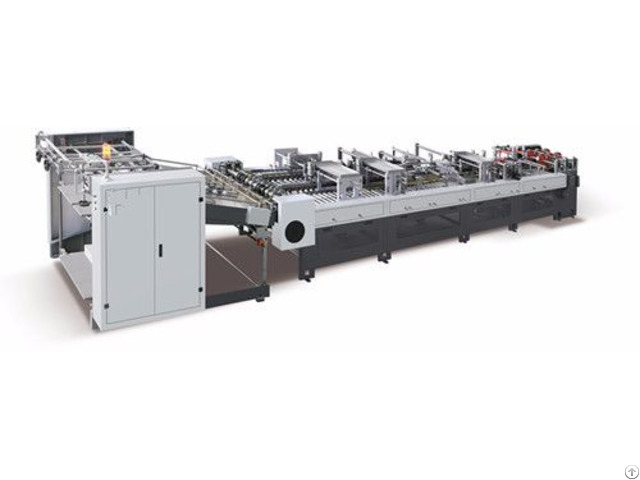

Bt 1100b Handbag Forming Machine - China

Major features

1) This machine is of high-degree automation and high precision of bag making.

It can produce various high-grade and middle-grade carrier bags as well as carrier bags for luxury goods.

2) This machine can greatly improve production efficiency, achieving objectives of streamlining staff, multiplying output, improving product quality and reducing costs for customers.

3) This machine is fed with printed and indented single-sheet paper by high-precision automatic feeder.

After automatic precise positioning through front lay gauge and side pull gauge, the paper is delivered to the automatic gluing position for such processes as gluing, automatic accordion folding and automatic paper-tube pressing to complete the paper tube forming.

4) This machine is designed to be user-friendly, with high-quality materials for its spare parts, high manufacturing precision, sound quality, easy & quick adjustment and convenient maintenance.

5) The gluing system adopts environment-friendly water-soluble cold glue (hot-melt glue system is also available) with adjustable glue thickness, so as to save glue and lower costs effectively.

6) Its computer is controlled by PLC system, with variable frequency speed control and man-computer interaction for the operation interface, allowing easy operation and adjustment for operators.

7) The display screen is 7-inch LCD fromTaiwan.

8) Electrical components for the main low-voltage control part of the whole machine adopt imported ones with brands such as Omron, TOSHIBA, SCHNEIDER, and German MOELLER.

9) This machine can realize automatic detection of double sheets and slanting sheets, so as to reduce product waste during the production process and ensure high-speed operation of the machine.

Easy and quick plate change mode (the adjustment of the position of conveying pressing roller for paper bag size and the adjustment of the position of accordion-folding die plate are included ), so as to ensure high efficiency of production

The characteristics of the product

KL-1100B handbag forming machine feeds die-cut single-sheet paper to make bag tube.

It features a continuous function of automatic paper delivery(by feeder), line aligning(by front guide and side guide), gluing(by water-soulble glue box), automatic tube folding, impressing (by steel rollers)and bag tube output.

It adopts water-soluble glue which has no harm to the environment.

(Equipped with hot-melt spray gun system can be optional)

3, The applicable paper materials

Brown paper, copperplate paper, white-plate paper, white paperboard and grey paperboard etc(including laminting paper)

Gluing information

Name

INFO

User：

Bed adhesive (spring bag adhesive)

Composition：

Synthetic Resin

Solid Content：

100%

Toxicity：

None

Molten Gardne：

4-6

Color：

yellow

R & B Softening Point：

About 82℃

Solid Time：

Medium Speed

Brookfield Viscosity：

160℃——About 3150CPS

170℃——About 2600CPS

Form：

Granular

RecommendedApplication Temp：

140-175℃

Store Life：

One Year

Technology information

N O.

Configuration

Model

1

Maximum paper feeding specification

(length × width)

1040×600 mm/40.94-23.62inch

2

Minimum paper feeding specification

(length × width)

480×290 mm/18.90-11.41inch

3

Paper weight range with unit

100～350 g (Art Paper128~300g)

4

Maximum bag-making speed

100 pcs/min

5

Organ height

60～150 mm/2.36-5.90inch

6

Glue type

Water-soluble cold glue

hot-melt glue system

7

Total power

10 kW(hot-melt glue system13 kW)

8

Overall dimensions

(length × width × height )

9000×1900×1600 mm

9

Total weight

5.5 T
