Bt 450 1240 Full Automatic Paper Bag Machine - China

The characteristics of the product

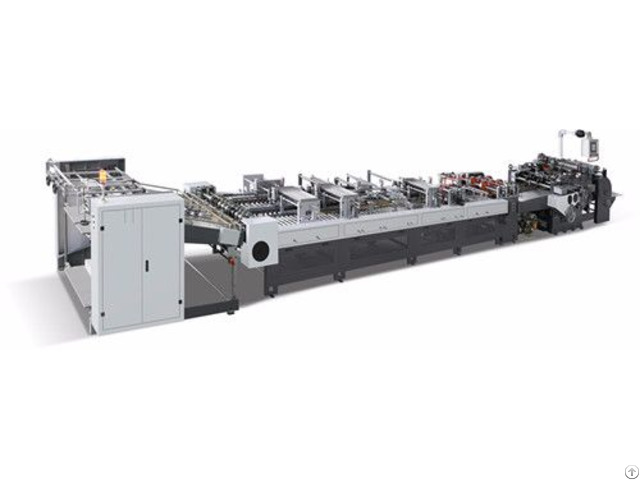

BT-450/1240 type full automatic paper bag machine is the ideal equipment to take the flat papers with original colors or printed well as raw materials to make into paper bags with square bottoms.

Its technique process is about the flat papers after printing are delivered into the driving parts for positioning through automatic paper feeder and press line with rolling press device and then make one-side glue, folding and positioning and sticking and conveying device will convey them into the bottom position and conduct press horizontal line, open bottom, make glue and press together and finally output finished bag products.

300GRAM

　　　　KORO is a manufacturer to make full automatic paper bag making

machine, which is the world’s first company to make paper bags of 300gsm.

The machine could make bags from 80gsm to 300gsm

2, Shorten the cycle time

We set new standards to cut down the cycle time .

Rapid cycle time improves capacity and lower production cost.

KORO machine is one of the fastest ones among its like products.



180MINS 　　　　　　　　㠀€ã€€ã€€

　　　　 Plat-making Time Only Needs 3 Hours,

And The Perfect Non-stop Operation Is Well Ahead of The similar Machine, To Win More Time And Create More Value.

3, Minimum wear and cost

Our engineering expertise and the long service life of our equipment guarantee higher capacity and lower cost while at the same time increase the output of quality products and reduce the unit cost.

5‰

The waste is strictly controlled within

5‰ to save costs and reduce losses

4, High Quality

1)Reduce Power

3.7KW

For the power consumption, the main motor of KORO paper bag making machine is only 3.7kw, which is much lower than similar machines 10-20kw.

Our machine is with the characteristics of reducing power consumption, paper costs, creating profits and more environmental protection.

2)Fastening

12.9Grades

High-end devices for the machine, even for each bolt, which using 12.9grades high strength bolts of more stress and more impact resistance.

3) Cooperation

NHK, SCHNEIDER, OMRON, MISIMI ETC.

From bearings to electrical apparatus, KORO company all use the international well –know high-quality brands, such as NHK, SCHNEIDER ETC.

The machine performance is more stable, more efficient.

5, The applicable paper materials

Brown paper, copperplate paper, white-plate paper, white paperboard and grey paperboard etc(including laminating paper)

Main Technical Parameters

Width scope of bag faca

260-450mm(10.24-17.72 inch)

Organ height

90-170mm(3.54-6.70 inch)

Paper width

600-1240mm(23.62-48.82 inch)

Paper length

380-600mm(14.96-23.62 inch)

Paper weight range with unit

A.

Brownpaper(yellow brown and wihile brown): 80-200g

B.

Copperplatepaper+PP peritoneum: 100-200g

C.

White paperboard: 180-250g

D.

Grey paperboar+PP: 150-250g

(take die cutting)

Product speed

40-70pieces/min

Glue type

Watery glue(sticking the side can increase heat melting glue system

Total power

13KW

Voltage : 380V

Frequency: 50HZ

with 4wires 3phases

Total weight

13T

Overall dimension(L*W*H)

15000*2100*1700MM
