Door Type Electronic Digital Display Tensile Testing Machine - China

Door type electronic digital display tensile testing machine The digital Fabric Tensile Strength Tester is a general term for a series of digital testing machines.

The equipment can be divided into single-arm and double-arm structures according to the model.

The test space can be divided into single space and double space according to the needs of users.

On the basis, 2 or more sensors can be added for multiple control methods and multiple tests coexist.

Door type electronic tensile testing machine - digital display advantages: 1 - The operation interface is simple, the user operability is strong, and the familiarity is high.

The entire control interface has 20 control buttons to realize the whole process of the test, and the liquid crystal display part simply and clearly reflects all the test data during the test process.

2 - The price is reasonable.

It is cheap for small and medium-sized enterprises and has a wide range of uses.

Because of its digital display capabilities, the integration is not high and the scalability is not strong.

However, the host structure is similar to the computer-controlled model, so it is required In low-cost trials, the price comparison has an advantage.

For printers, users can choose a mini-printer, and the price is not expensive.

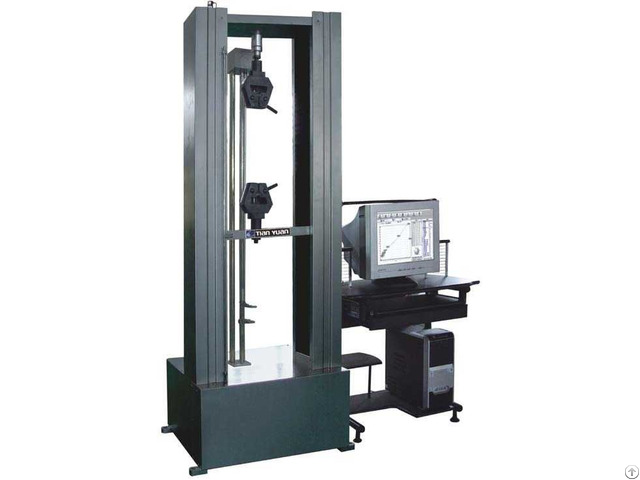

The main structure of the 5-ton digital tensile testing machine: Double Arm Pose:

1 Host: It adopts a portal double screw and four column structure.

2 Transmission system: It is composed of reducer, precision screw pair and guide part.

3 Drive system: The system is driven by AC servo governor and motor.

4 - Measurement control system: The test force measurement control system is composed of high-precision load cells, measurement amplifiers, A/D conversion, regulated power supply, etc.

; Through various signal processing, the functions of liquid crystal display, control and data processing are realized.

5 Safety protection devices: style break shutdown, overload protection, beam limit position protection, overcurrent, overvoltage, overspeed protection, etc.

Single-arm type: The host adopts a single-screw, double-column mechanism, and other components are similar to the double-arm type! The function of the direction keys of the instrument box of the 5-ton digital tensile testing machine: The keys of the instrument box of the digital display tensile testing machine mainly include functions such as direction keys, test, return, zero adjustment, displacement, speed, calibration, beam movement keys, query, print, reset and other functions.

The function keys cooperate with each other.

ps: (WLJCDM809)
