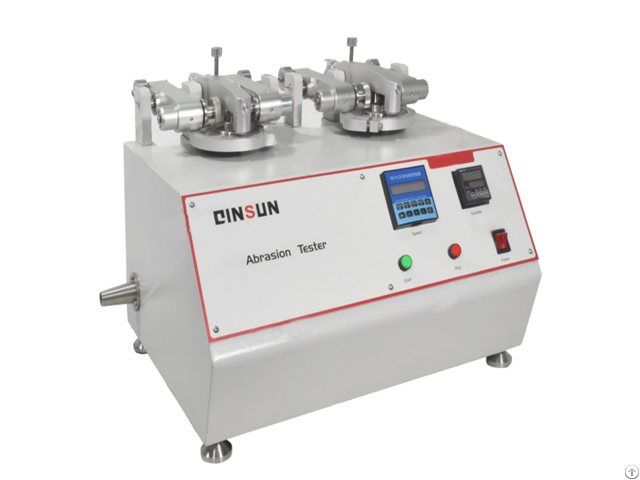

Felts Taber Abrasion Tester 5135 - China

The universal abrasion tester/universal abrasion tester is equipped with a flat abrasion test head (inflatable film abrasion test method) and a curved abrasion test head, as well as the required weights and sandpaper, a built-in timer and a mechanical cycle counter, which can test the abrasion performance and wear resistance of all kinds of fabrics, including clothing, shoes and technical textiles.

Scope of application.

Can be flat grinding, curved grinding, edge grinding, folding edge grinding and resistance to frosting, edge and pile wear test, the tested sample can be dry state, can also be immersed in water, oil or other liquids, can be used for woven fabrics, knitted fabrics, coated fabrics, pile fabrics, socks, felt, non-woven fabrics, deep fabrics, yarn, string plastic film, rubber, leather, paper and a variety of other materials.

Applicable standards.

ASTM D3514 D3885 D3886, AATCC 119, 120, FTMS_191_Method_5530, FORD EFB 15J2/BN 112-01 - Textile universal abrasion resistance tester/universal abrasion tester main parameters.

1, Inner diameter of clamping ring: 94mm;

2, Lock ring height: ≤9.5mm;

3, Speed: 120±15/min;

4, Dynamic range: 25mm;

5, Air pressure: 62kPa(9psi);

6, Outline size: 330×500×460mm(L×W×H);

7, Weight: 33kg(72lb);

8, Power supply: 120/230V, 50/60Hz, 2A/1A.

ps: (WLJCDM809)
