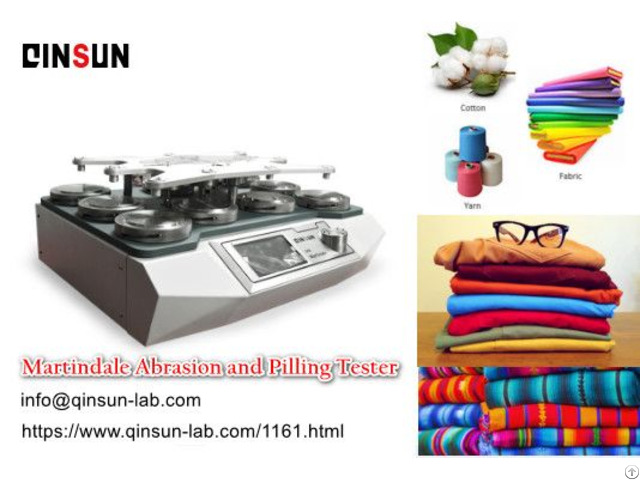

Iso 12945 Martindale Abrasion And Pilling Tester - China

iso 12945 martindale abrasion and pilling tester The Martindale Pilling Tester tests the abrasion and pilling properties of various plants.

Under a certain pressure, the specimen is subjected to continuous commutation friction with a specified abrasive, and the degree of wear and pilling is evaluated in comparison with standard parameters.

Touch screen control with fully functional programmer, pre-programmable batch and total counts, individually set counts for each test head; 4 speeds including standard speed can be selected.

Conforms to standards.

ASTM D4970 ISO 12945.2, GB/T 4802.2/13775/21196.1/2119 6.2 ASTM D4966 ISO 12947 FZ/T 20020 BS 3424-24/5690 ISO 12947.1/12947.2 M&S P17/P19/P19C NEXT 18/18a/18b ISO 5470-2 IWTO-40 JIS L1096 8.17.5 Method E Woolmark TM 112/196 BS EN 388/530/13770 ISO 20344 Technical parameters.

1 - Number of work stations: 9 positions;

2 - Counting range: 0~999999 times

3 - Maximum moving range: horizontal 60.5±0.5mm vertical 24±0.5mm

4 - Pressurized object mass.

a.

Gripper: 200±1g

b.

Clothes specimen weight: 395±2g

c.

Furniture decorative sample weight: 594±2g

d.

Stainless steel butterfly: 260±1g

5 - Effective friction diameter of the grinding block

A type 200g (1.96N) friction head (9KPa) ¢ 28.8-0.084mm

B type 155g (1.52N) friction head (12KPa) ￠ 90 -0.10mm

6 - Gripper and grinding table relative movement speed: 20-70r / min (adjustable)

7 - Loading sample pressure hammer mass: 2385±10g ps: (WLJCDM809) tag:

martindale abrasion and pilling tester, martindale abrasion tester, martindale pilling tester, abrasion and pilling tester, china martindale tester, martindale abrasion and pilling test instrument, martindale abrasion tester price, martindale tester, martindale, martindale fabric abrasion tester, martindale abrasion tester for sale, pilling test by martindale abrasion tester, martindale tester price, martindale abrasion and pilling tester price
