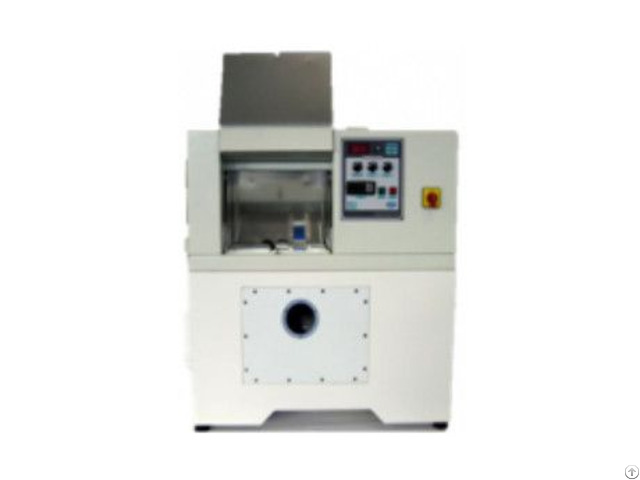

Gbn701 Hood Ventilation Resistance And Pressure Difference Tester - China

GBN701 Hood ventilation resistance and pressure difference tester GBN701 Medical Mask Ventilation Resistance and Pressure Difference Tester Application: It is suitable for measuring the ventilation resistance and pressure difference of medical hoods, and can also be used to measure the gas exchange pressure difference of other textile materials.

Product principle: The output of the airflow is set by the gas flow meter, so that the airflow passes through a certain area of ​​the test sample, the current pressure is detected by the pressure sensor and the pressure difference is calculated.

Standards compliant: YY0469-2011, YY0969-2013 Product Specifications: Project Technical Parameters Air source Compressed air Air flow 1 - 10L/min can be set (standard 8L/min) Air flow accuracy class 1 The breathable diameter of the sample is Ф25mm; Differential pressure sensor range 0～500Pa; Pressure sensor accuracy class 0.5 Display mode touch screen; Size 48*43*57cm Weight 30kg Power supply 220V, 50Hz.

Features 1 - Equipped with a special sample holder, which is simple and convenient to use.

2 - Built-in high-definition touch display.

3 - Built-in micro-printer, easy to print experimental results.

4 - Equipped with a high-precision differential pressure sensor, digital display of the pressure difference between the two samples; 5 - Equipped with high-precision gas flow control, real-time digital display of flow, stable control of airflow and manual setting.

6 - The test time can be adjusted arbitrarily according to the test requirements.

QINSUN Packaging Equipment Co., Ltd. specializes in the research and development, production, sales, and service of packaging testing instruments and their software.

The main products are moisture permeability meters, air permeability meters, oxygen permeability meters, particulate matter filtration, bacterial filtration efficiency, tube sealing machines, and modified atmosphere preservation., tensile machine, heat sealer, sealer and other packaging testing equipment.

More than 10, 000 enterprises and institutions in more than 40 countries and regions have provided competitive laboratory construction solutions.

The service covers the national quality inspection and drug inspection institutions, scientific research institutions, packaging, printing, food, medicine, daily chemicals, chemicals, new energy, new materials and other fields.

Some honorary qualifications of QINSUN: QINSUN testing center, certified by CNAS national laboratory; The company is an expert in the Asia-Pacific region who has developed a standard material unit for moisture permeability, air permeability and oxygen permeability, which provides judgment standards and calibration basis for barrier performance testing; The company has more than 100 items, cooperates with scientific research institutions, and focuses on packaging testing technology innovation; The company has passed ISO9001: 2008 certification, and its products have passed 3C, 3Q, CE, FCC and other certifications.
