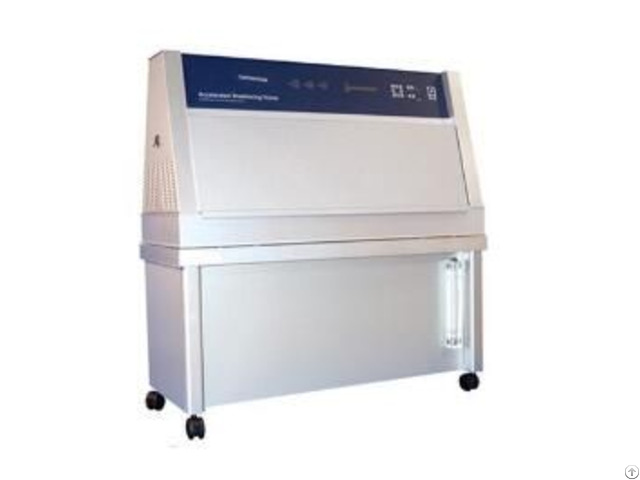

Lifetime After Sales Uv Aging Test Chamber - China

Lifetime after-sales - UV aging test chamber The UV aging test chamber uses a fluorescent UV lamp as the light source.

By simulating the UV radiation and condensation in natural sunlight, the accelerated weather resistance test of the material is carried out to obtain the weather resistance result of the material.

Product principle and function:

The UV aging test chamber uses a fluorescent UV lamp as the light source.

By simulating the UV radiation and condensation in natural sunlight, the accelerated weather resistance test of the material is carried out to obtain the weather resistance result of the material.

It can simulate the environmental conditions of ultraviolet, rain, high temperature, high humidity, condensation, darkness and other environmental conditions in the natural climate.

By reproducing these conditions, it can be combined into a cycle and let it automatically execute the number of cycles.

Box structure:

Material structure: Shell material: sprayed with high-quality A3 steel plate

Liner material: imported SUS stainless steel plate

The sample holder consists of a gasket and an extension spring, both of which are made of aluminum alloy

Dish pan material: stainless steel

Standard configuration of the test box: 8 UV lamps are installed on both sides of the studio

Number of sample holder clamps: 20 pieces

Sample holder fixture size: 404×105(mm)

Others: The heating method is the inner tank water tank heating, the temperature rises quickly, and the temperature distribution is uniform.

The drainage system uses the vortex type and U-shaped sedimentation device for drainage

The distance between the surface of the sample and the plane of the UV lamp is 50 mm and parallel

The actual studio is composed of test samples and brackets to form the inner wall of the box, trapezoidal shape

Inner tank water level automatic replenishment

The box cover is a two-way flip type, easy to open and close

The bottom of the test box adopts high-quality fixable PU movable wheels PS: (WLJCDM809-W)
