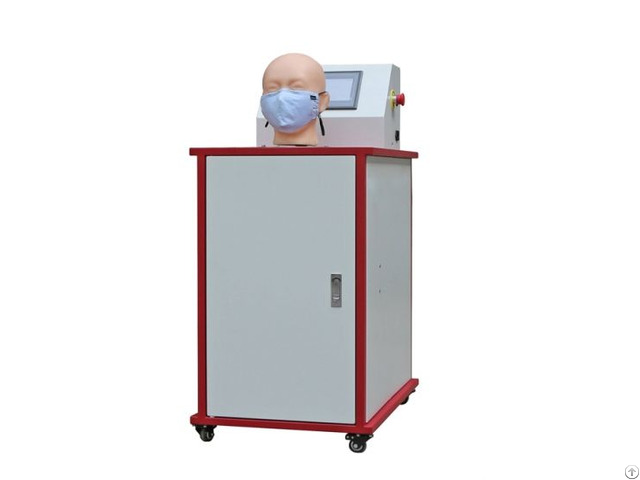

Mask Filtration Efficiency Tester - China

Mask Filtration Efficiency Tester The mask filtration efficiency tester is used to test the particulate filtration efficiency of disposable medical masks, medical surgical masks, ordinary masks and other daily protective finished masks, as well as the r spray cloth used for the production of masks.

It can be applied to salt and oil tests.

Scope of application: It is suitable for medical device inspection centers, safety protection inspection centers, labor protection inspection centers, drug inspection centers, disease prevention and control centers, masks, r spray cloth, respirator manufacturers, etc.

Applicable standards: GB 32610-2016 Technical specifications for daily protective masks GB 2626-2019 Respiratory protective equipment - Self-priming filter type anti-particulate respirator GB 19082-2009 Technical requirements for medical disposable protective clothing GB 19083-2010 Technical requirements for medical protective masks YY 0969-2013 Disposable medical masks YY 0469-2011 Medical surgical masks Main parameters of mask filtration efficiency tester: 01 - Control mode: automatic; 02 - Sample flow rate: (10-100) L/min; 03 - Sample clamping: pneumatic clamping; 04 - Aerosol generator: salt particulate aerosol and oily particulate aerosol; 05 - Equipped with aerosol particle electrostatic charge neutralization device; 06 - Pneumatic clamps are equipped with protective devices, which are safe and convenient to use; 07 - Differential pressure: 2000Pa±1%FS; 08 - Test period: 30s or other; 09 - Detection range of filtration efficiency: 0-99.999%; 10 - Filter material section: various/according to usage requirements; 11 - Weight: 155kg; 12 - Power supply: AC220V, 50Hz; 13 - Size: 900mmX850mmx1650mm.

Main configuration: 1 - Host: 1 set 2 - Aerosol generator: 1 set each (oily and salty) 3 - Dust particle counter: 2 sets 4 - Static neutralization device: 1 set 5 - Programmable controller: 1 set 6 - Operation manual: 1 copy 7 - Power cord: 1 PS: (WLJCDM809-W) Qinsun Instruments Co., Ltd

Company Contact:

• Posted By: Qinsun Instruments (Shanghai) Co., Ltd.

• Phone: +862164200566

• Address: No. 2578 Minhang District Gu Dai Road, Shanghai, Shanghai , shanghai , China

• Email:

• Website: https://www.qinsun-lab.com

• Business Description: Qinsun Instruments Co., LTD was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.

  Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.

  Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.

  We have our own textile testing lab.

  Our textile testing methods and testing equipment are in the leading position in the industry and have passed the textile testing certification and iso textile testing standards issued by a number of testing.

  We always develop the highly sophisticated test instrument which can meet the various demands of the textile industry.

  We provide the upfront Micro weathering test equipments with our own brand name QINSUN, such as thermal resistance wet resistance meter, MMT(moisture management tester) etc, and the new functional test instrument include air permeability tester, hydrostatic head tester, thermal protection performance tester, as well as the widely used lab testing equipment such as textile washing color fastness tester, abrasion tester, pilling tester, rubbing color fastness tester, ironing tester and perspiration tester.

  For the laboratory requirements, we also bring forth the new practical test instruments.

  Qinsun products include: fabric test equipment, Textile Fabric Tester, fiber tester, yarn tester, carpet tester, non-woven fabric tester, toy tester, leather tester, automotive material test equipment and others.
