Qs Solar Aging Test Box - China

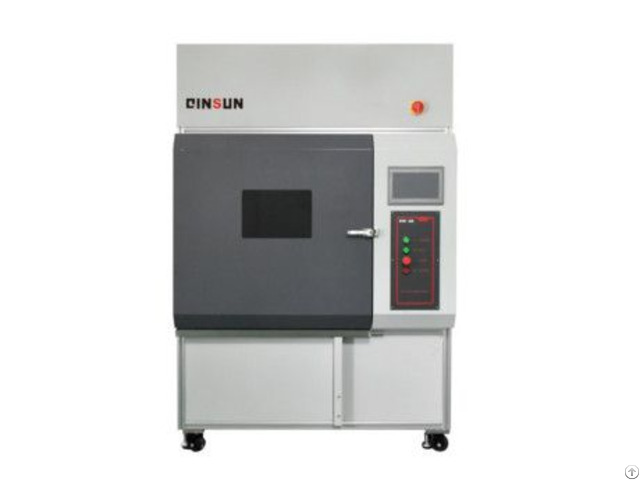

QS solar aging test box The QS Xe-3-HBSE solar aging test box is a fully functional light stability, color fastness and light fastness test box.

It uses three independent xenon lamp tubes.

The size of the universal sample rack tray is 451mm×718mm, which can test three-dimensional samples.

The QS Xe-3-HBSE solar aging test box is the largest among the xenon lamp aging test chambers produced by Q-Lab in the United States.

It can meet the needs of all sample testing.

When using the QS Xe-3-HBSE solar aging test box The xenon lamp tube produced by Q-lab in the United States is used.

The tube life can reach 1500 hours.

The long-life use of the tube allows you to maximize the reduction of test costs.

Irradiance control function

QS Xe-3-HBSE solar aging test chamber irradiance control SOLAR EYE solar eye irradiance control system can continuously detect and control the output of light, ensuring the stability of light energy output.

The irradiance can be controlled at 340nm, 420nm or TUV, even after a long period of testing, the consistency of the output spectrum can be guaranteed to obtain reliable test results.

Filter

In the Xenon lamp accelerated weathering test, the output spectrum of the lamp tube needs to be filtered by the filter before it can be used for sample testing.

The QS Xe-3-HBSE solar weathering test box filter and radiometer are very durable and accurate Maintain the required spectrum and can be used for a long time under normal conditions.

The standard used in the test specifies the types of filters (except IR filters) that need to be configured.

Spray function

Humidity, such as water spray, condensation and humidity, is the key to testing many materials.

All QS models provide optional spray function, and Xe-2 and Xe-3 models provide standard relative humidity control.

When the material is to maintain the moisture balance with the surrounding environment, the material will produce physical stress, which in turn will cause aging due to humidity.

Relative humidity also affects the drying speed of the sample.

Humidity control is often required in some widely used test methods.

The samples exposed to the QS Xe-1 and Xe-3 solar aging test chambers are fixed on an approximately horizontal plane.

During and after the spray cycle, a large amount of spray water will remain on the sample surface for a long period of time.

This completely simulates the actual use of many products (such as automotive coatings and parts, wood coatings, plastic sheets and some roofing materials).

Sample capacity

The QS Xe-3-HBSE solar aging test box uses a multifunctional three-dimensional sample holder, which can be used to fix test samples of different shapes and sizes.

The total sample exposure area is 3250 square centimeters and can accommodate 55 standard sample racks.

Can meet the test standards:

QS Xe-3-HBSE has a wide range of standards, including but not limited to the following standards: AATCC TM 16, AATCC TM 169, ISO 105 B02, ISO 105 B04, ISO 105 B06, ISO 11341, ISO 4892-1&2, SAE J2412, SAE J2527, IEC 68-2-5, JIS L0843, Marks & Spencer C9&C9A, JASO M346, ASTM G151, ASTM G155, PV 1303, PV 3929, PV 3930, ASTM D4355, JASO M346, GMW 3930, GMW 14867, VDA 675242, GB/T 8427, GB/T 8430, GB/T 14576, etc.

Qinsun is a global leading leather&textile testing instruments manufacturer.

Focus on developing and manufacturing leather&textile testing equipment.

Our leather&textile tester is very popular in HK and UK.

In addition, if you purchase our leather&textile testing equipment, we can provide the corresponding pdf manual for free.

Welcome to order.

PS: (WLJCDM809-W)
