Soft Infrared Carbon Heater Film High Polymer Material Three Different Structure - China

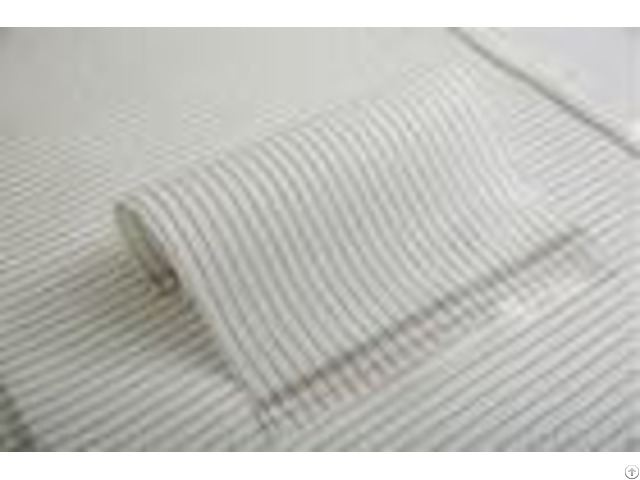

Soft Infrared Carbon Heater Film High Polymer Material, Three Different Structure 1 - Product Describe Soft Heating-Film produced by GUANRUI Technology is a superior and advanced heating material for floors, ceilings, walls and many other place.

2 - Using Method The first step, our company is using the carbon paste and graphene combined with the thermally conductive fibre evenly to becomes a 360- degree surround heating fibre, which is called the graphene filament composite fibre.

Meanwhile, we weave the graphene filament composite fibre with the multi-directional conductive fibre and silver -plated copper wire with specific weaving techniques, that is the one we called flexible heating base material.

Furthermore( in the third step), we incorporate the materials of a flexible heating base and the variety of flame retardant insulation polymer into one under the 260* to 300 * high temperature.

EASE OF MOUNTING TTWARM perforated film has a unique patented surface and woolly coating of NapTouch that allows to save up to 32% on construction mixes and characterizes material as resistant to alkaline influence of tiles adhesive or plaster.

High adhesion (bond of surfaces) enables the system mounting under any decorative coating.

Frequently Asked Questions [How warm will the floor get?] Electric underfloor heating is designed to run with a floor surface temperature at a comfortable 25 28 deg C.

In areas of high heat loss (such as conservatories) you may need to run it a few degrees higher than this to compensate.

[Can the temperature be regulated?] Yes The digital clock thermostat allows the user full control both the temperature & times the heating system is operating, and also you can control the app throgh the WIFI by your phone.

[Are there any special wiring requirements?] For most small rooms the system can often be connected to an existing household wiring circuit via a fused spur, for larger areas a single dedicated circuit from your distribution board will be needed.

All electrical work must be made by a qualified electrician who will be able to advise you on what you need.

[What is the warm up time?] How long it takes to heat the floor will vary, depending on your sub-floor & its insulation.

The better the insulation the quicker it will heat up, 30 minutes to an hour on a wooden floor, but it may take several hours on an un-insulated concrete floor.

However, on concrete floors it will also retain the heat in the concrete & therefore take much longer to cool down.

Warm-up times can be drastically reduced.

To as little as 15-20 minutes using an insulated tile-backer board such as Handyheat Tilebacker board.

[Is there a guarantee?] Yes all cables are backed by a manufacturers LIFETIME guarantee the thermostat is guaranteed for two years from date of purchase.

The carbon film is guaranteed for FIVE-YEARS
