Anode For Printed Circuit Board

Acid electrolytic copper plating is an important step in the hole metallization process of PRINTED circuit board.

With the rapid development of microelectronics technology, PCB manufacturing is developing rapidly to multi-layer, multi-layer, functional and integrated direction.

Make printed circuit design greatly with tiny holes, narrow spacing, fine wire circuit design, graphic design and making printed circuit board manufacturing technology more difficult, especially in a multilayer through-hole 5-1 and laminated plate aspect ratio is more than the deep blind hole are used in great quantities, make regular vertical plating process can not meet the technical requirements of high quality, high reliability interconnect hole, So came the horizontal plating technology.

What role do anodes play in printed circuit board manufacturing?

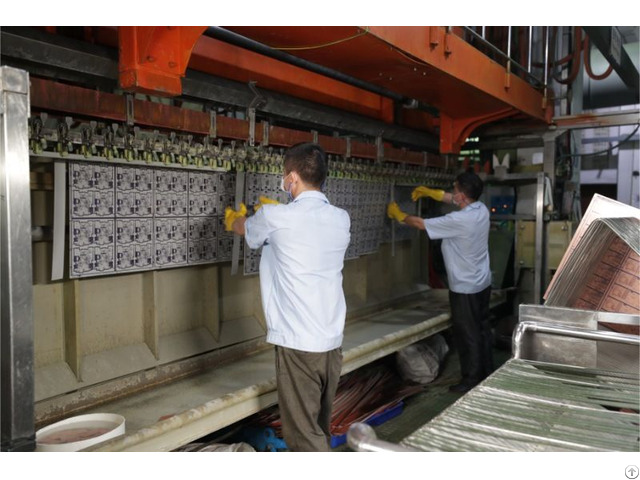

Electroplating is the process of laying down a thin layer of metal, usually copper, on a PCB or printed wiring board (PWB) to create a conductive surface that enables circuit functionality.

Anodes are central to the electroplating process as they are the source of the metal that is deposited on the PCB during the electrolytic process.

The electroplating process will determine the quality of the finished product, specifically the conductivity of the entire board.

The process is a cost center in PCB and PWB manufacturing, and companies can maximize long-term profitability by producing the highest quality product at the lowest possible cost.

Which anode properties guarantee quality printed circuit board plating?

For excellent PCB plating results with strong connectivity, the following anode properties are ideal: Good plating uniformity: This depends on maintaining a consistent gap between the anode and cathode and keeping the current steady.

High production efficiency: Anodes that can operate at high current densities achieve excellent plating results.

Low additive consumption: Additives are expensive, and anodes that consume as little additive as possible should be preferred over those with high additive consumption.

Low maintenance requirements: Anodes do not produce sludge and last longer, reducing maintenance and downtime costs.
