Army Defensive Barrier - China

Army Defensive Barrier Hesco Barrier Vendor Military Defensive Barrier Product Description

Army defensive barrier also named as Hesco bastion, Hesco defense wall, sand cage, welded gabion box, etc.

It is a prefabricated, multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile.

Units can be extended and joined using the provided joining pins.

It is easy installed with using minimal manpower and commonly available equipment.

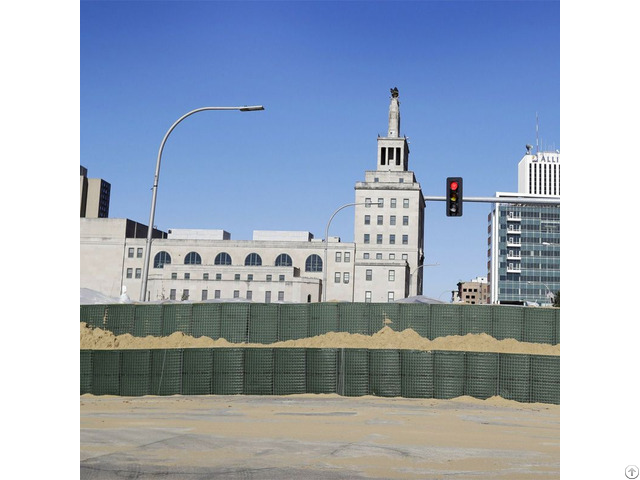

After extended, it is filled into sand, stone, then hesco barrier like a defence wall or bunker, it is widely used for military fortification and flood control.

Accessories Supplied With Carrier Units

Product Name Army defensive barrier

Product Type Welded mesh

Material Galvanized steel wire or Galfan/zinc-5%aluminum wire

Wire Diameter 4.0-5.0mm

Geotextile 250g-400g

Geotextile colour sand clolor, Brown, Gray, and Military Green.

Mesh hole 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm×100mm

Model Height(M) Width(M) Length(M) Number of cells

YY-1(Mil 1) 1.37 1.06 10 5+4=9 cells

YY-2(Mil 2) 0.61 0.61 1.21 2 cells

YY-3(Mil 3) 1.0 1.0 10 5+5=10 cells

YY-4(Mil 4) 1.0 1.5 10 5+5=10 cells

YY-5(Mil 5) 0.61 0.61 3.05 5 cells

YY-6(Mil 6) 1.68 0.61 3.05 5 cells

YY-7(Mil 7) 2.21 2.13 27.74 5+4+4=13 cells

YY-8(Mil 8) 1.37 1.22 10 4+5=9 cells

YY-9(Mil 9) 1.0 0.76 9.14 6+6=12 cells

YY-10(Mil 10) 2.12 1.52 30.5 5+5+5+5=20 cells

Military Defense Barrier can be widely used in surrounding security and defensive walls, equipment revetments, explosives and contraband search areas, ammunition compounds, personnel and material bunkers, observation points, defensive shooting positions, highway checkpoints, border checkpoints, protection of existing structures, highway traffic management, flood control, river courses, emergency flood control deployment, erosion control, retaining walls

Army defensive barrier characteristics

1 - Easy to handle and install

2 - High strength and impact resistance

3 - Long life, normal use

4 - It can be filled with sand, cement, stones, and soil.
