Customized Epdm Silicone Rubber Ring - China

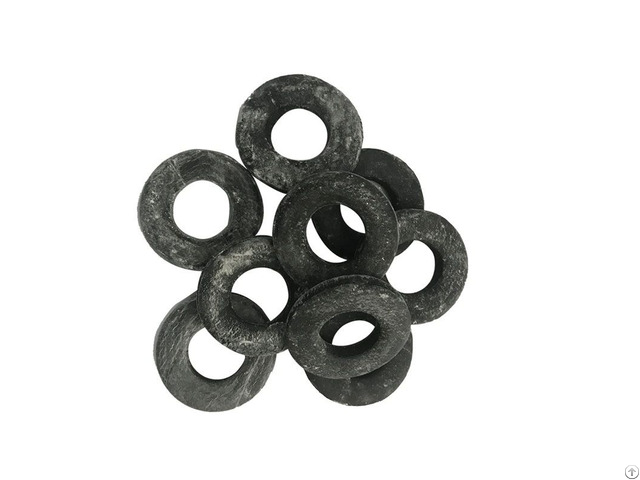

The putty type water expansion sealing ring is made of water expansion rubber, it can be a round sheet, the opening of the middle position should be based on the bolt or the different on the pull ring, respectively made of a round hole or cut a long seam through both sides (.

The thickness of the sealing ring is 7~20mm, and the diameter or side length is 30~80mm.

The commonly used specifications are PZ type, which is a rubber ring with outer dimension D=40mm, thickness H =10mm, and middle hole diameter 2mm smaller than the diameter of the pull bolt (adjust the external dimension according to the height of the water head, ring body thickness or the number of rings used on each bolt).

In use, as long as the water stop ring is tightly set on the middle of the pull bolt or the pull piece, and it is finally buried in the cast-in-place concrete.

When the building is used, such as a side of the pressure water bolt gap (due to the dry shrinkage of the concrete itself, inevitable) into the middle of the rubber sealing ring, sealing ring water absorption expansion, the formation of impermeable plastic colloid, blocking its surrounding seepage access, play a role in sealing.

Company Contact:

• Posted By: Hengshui Runli rubber plastic new material technology Co., Ltd

• Phone: 15903288269

• Address: NO.22, RUBBER ROAD,, Hengshui , Hebei , China

• Email:

• Website: http://www.runlirubber.com/

• Business Description: Hengshui Runli Rubber New Material Technology Co., Ltd. is an enterprise specializing in R&D and production of engineering materials.

  Over the years, the product quality has been stable and reliable and has been well received by users.

  With "good use of resources and service construction" as the core concept, we will vigorously implement the strategies of "technological innovation", "internationalization of building materials", and "strengthening enterprises with talents", and continuously increase research efforts.

  Form a set of peer-leading R&D, manufacturing, marketing and service management systems, adhering to the marketing concept of "market, integrity, quality, and innovation".

  On this basis, the company is willing to actively cooperate with new and old customers and partners to seek common development and achieve common development.

  Create brilliance.
