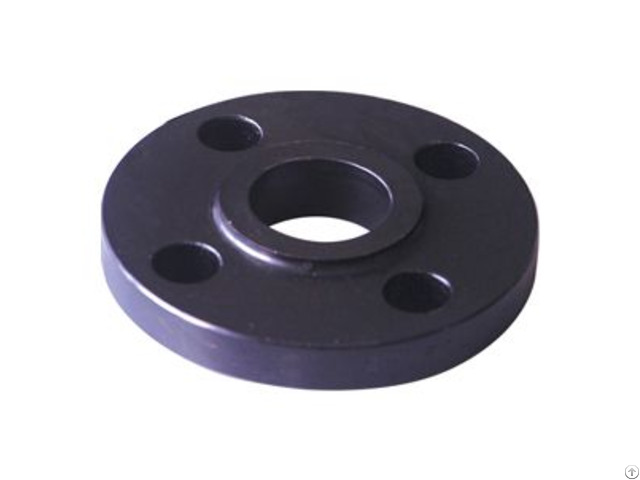

A flange is a part used for connections between the ends of tubes or used at the entrance and exit of equipment for connections between two devices.

A flange connection is a detachable connection connected by a combination of flanges, gaskets, and bolts as a set of combined sealing structures.

A flange has holes in its eyes, and the bolts keep the two flanges close together.

The flanges are sealed with a gasket and flanges are used in pairs.

The flange thickness varies from different pressure, and the bolts used are different accordingly.

Pumps and valves, when connected to pipes, are also made into corresponding flange shapes at connnection parts.

Standards & Sizes of Flanges

1)ANSI/ASME B16.5 Size: NPS 1/2＂-24＂ 2)ANSI/ASME B16.47 Series A(MSS SP-44) Size: NPS 26＂-60＂ 3)ANSI/ASME B16.47 Series B(API 605)Size: NPS 26＂-60＂ 4)ASME B16.36 Size: NPS 1＂-24＂ 5)DIN Standard　Size: DN10-DN4000 6)BS 4504 Size: DN15-DN2000 7)BS 10 Size: DN10-DN3000 8)JIS B2220 Size: 10A-1500A 9)UNI Standard Size: DN10-DN2000 10)EN 1092-1 Size: DN10-DN400 Materials Used by Leading Flange

01

Carbon Steel: A105, RST37.2, C22.8, P235GH, P265GH, S235JR, A37, A42, etc.

02

Stainless Steel: F304/F304L, F316/F316L, F321, F44, F55, etc.

03

Other Alloy Steel: A350 LF2 F52/F60/F65/F70, etc.

Click on any of the models for further information or contact us directly to speak to us

about your particular requirements.

Flanges Manufacturing Process

Casting



The blank size of a casting flange is accurate, so it enjoys little processing volume.

The advantage of castings is that they can produce more complex shapes and have a lower cost.

But casting flanges have more casting defects (pores, crack), the internal organizational structure of the casting flanges is worse.

Forging



Let's take a look at the production process for forging flanges: The forging process is generally composed of the selection of high-quality billet material, heating, forging, cooling.

Forging methods include free forging, mold forging.

When producing, forging methods are selected according to the size and the number of flanges to be produced.

The advantage of forged flanges is that the internal organization structure is uniform, and there are no pores, impurities, and other harmful defects; Forged flanges can withstand higher shear and tensile forces than casting flanges.

The disadvantage is that forged flanges cost much more than casting flanges.

Cut Flanges



This method is to directly cut out the outer diameter of the flanges on the steel plate with suitable thickness, and then process the bolt holes and water lines.

The maximum diameter of such flanges is limited to the width of the steel plate.

The advantage of this method is low cost and the disadvantage is that only plate/blind flanges can be made by this method.
