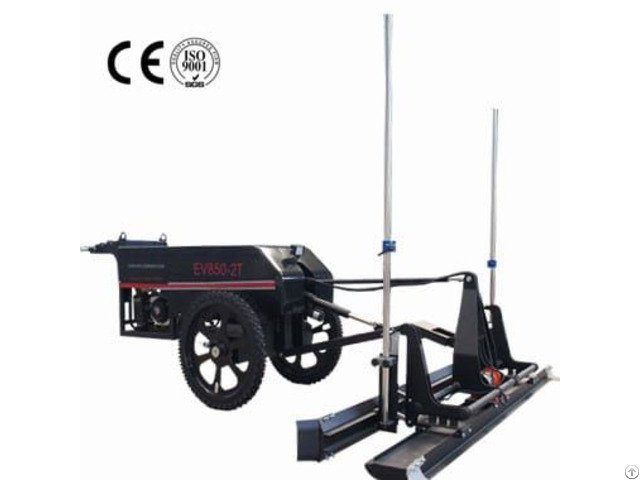

Ev850 2y Walk Behind Laser Screed Machine 3m Type - China

With compact size and light weight, it can not only move faster and more efficiently on complex work sites, but also on the floor and on single and double-layer steel mesh.

The two-wheel laser screed (EV850-2Y) is equipped with a new generation of laser system, and the ground leveling can reach the laser screed accuracy.

Significant performance, a team of at least three people can level the floor of above 300 square meters per hour, and achieve a flatness above FL40 - It can realize the large-scale overall paving of concrete floors and ground, saving templates and improving work efficiency.

Power Power generation 3.2 kw

Engine model YUCHAI diesel engine

Fuel consumption 0.6-1L/hour

Operating Voltage Single phase 220V--50AH

Fuel tank capacity 14L

Laser control system Laser system control method Microcomputer laser scanning

Laser system control results Plane, slope, double slope

Laser control system Leica, Switzerland

Walking system Walking mode Reducer+Motor

Tire Anti-solid narrow tire (inflatable wide tire)

Leveling head Type Gravity self-balancing

Vibrating plate width 3000mm

Vibration force 500N

Vibration frequency 4000 times / minute

Level adjustment Leveling head self-adjusting

Size and weight Weight 530kg

Length*width*height 3210x3100x1160(mm)

Concrete laser screed machine Performance Characteristics 1 - Intelligent operation by handle and easy to control, the machine can be operated by one person.

It can freely move and turn with agility, allowing a running system controlled by hand.

The wheels can go forwards, backwards and around with manually controlled speed.

2 - Laser gun is installed separately, which makes it possible to do large area one-time construction while ensuring consistent ground level.

The ground level will not be affected by the pattern plates, inducing no random error .

Large area one-time construction will reduce joint place, thus lower the follow-up ground maintenance cost.

3 - Integrated Leveling Head comprises scraper blade, vibrator, vibrating plate, screw conveyor and other parts, combining working procedures of mixing, leveling, vibrating and etc, to complete the job in a row, so as to increase efficiency and reduce cost.

It can keep level of the working surface even when the ground base is uneven with bumps and slope.

Square end vibrating plate of 4000 times/min high vibration frequency will ensure concrete floors with great intensity and dispersed deformation strength, thus effectively prevent the occurrence of floor bubble, shell, cracking and unevenness.

4 - The elevation is measured automatically by the laser measurement and control system; and the ground’s high point height is automatically controlled by the laser machine’s computer.

Based on that, the ground can be more even by precision leveling directly on the concrete layer and the ground flatness will not be influenced by the pattern plates.

Without having to be the formwork, the cost for material and labor as the working period will all get reduced.

This machine can finish construction area of more than 300 sq.

meters per hour.

which means 3000-5000sq.

meters per day.
