Gabion Baskets And Geotextiles For River Training In Bridges Construction - China

Gabion Baskets and Geotextiles for River Training in Bridges Construction - Gabions PVC Coated and Galvanised Carbon Steel Wire Fabricated of Hexagonal Woven Wire Mesh

Basket gabions lined with geotextile fabrics are major structure for the construction of bridges along highways with the associated road approaches and earthworks.

How do Gabions and Geotextile Fabrics form a bank protection system suitable for carrying out bridge projects? General Introduction:

As part of the bridge construction works, the Gabion Basket and Geotextiles are needed for the river training and bank protection.

Gabions and geotextile fabrics work together to form strong draining-free gabions wall river banks suitable for bridge construction.

Construction of levees and platforms for river training works, and realignment of channels and reshaping of river channels adjacent to bridges shall be carried out.

The bridge structures are generally founded on steel tube piles with cast in-situ substructures.

The superstructures consist of steel plate girders capped with cast in-situ concrete decks.

These structure along the river requires a good ground and surrounding soil condition to support.

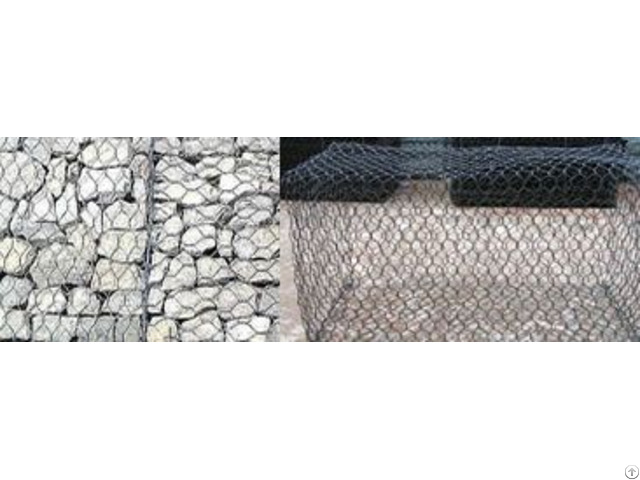

The gabion baskets shall be flexible P.V.C.

coated and galvanised wire boxes fabricated of hexagonal woven wire mesh.

Each gabion shall be divided by diaphragms into cells and selvedged.

All wire used in the fabrication of the gabions and in the wiring operations during construction shall, after galvanising, have extruded on to it a coating of polyvinyl chloride or “PVC.

” The coating has an average thickness of 0.55 mm and nowhere be less than 0.40 mm in thickness.

The pvc coated gabion mattresses are capable of resisting deleterious effects of natural weather exposure and immersion in salt water.

Company Contact:

• Posted By: Aerct Gabiony Factory

• Phone: 0086-534-8753002

• Address: Hongqi St. wuxi, Dezhou,China, dezhou , -- Choose state --, China

• Email:

• Website: https://www.gabiony.net

• Business Description: Aerct Gabiony Factory is a customer-driven producer and exporter of gabions and related wire netting products with good performance.

  Our factory is mainly engaged in box gabions mesh: gabions is made of low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire by mechanical weaving, and the box structure made of this net is gabion net cage.

  According to ASTM and EN standards, the diameter of low-carbon steel wire used varies according to engineering design requirements.

  Generally between 2.0-4.0mm, the tensile strength of gabion mesh steel wire is not less than 38kg/m2, the weight of metal coating is generally higher than 245g/m2, and the diameter of edge line of gabion mesh is generally larger than that of mesh wire.

  The length of the twisted part of the double wire shall not be less than 50mm to ensure that the metal coating and PVC coating of the twisted steel wire are not damaged.

  Utilizing a team approach, Aerct delivers excellent customer services and products including but not limited to: hexagonal wire netting, welded mesh gabions, woven hexagonal gabions, gabions baskets, gabion boxes, mattress, flexible soft hillside protection wire mesh gabions as well as other gabion systems.

  Aerct teams work with customers to standardize a manufacturing process, and deliver products and technical services as needed.

  As supplier of wire mesh gabions, Aerct is recognized as a one leader in quality and innovation.

  ISO 9001 certified in 1998.

  Welcome to contact us.
