Gabion Mesh Mattresses - China

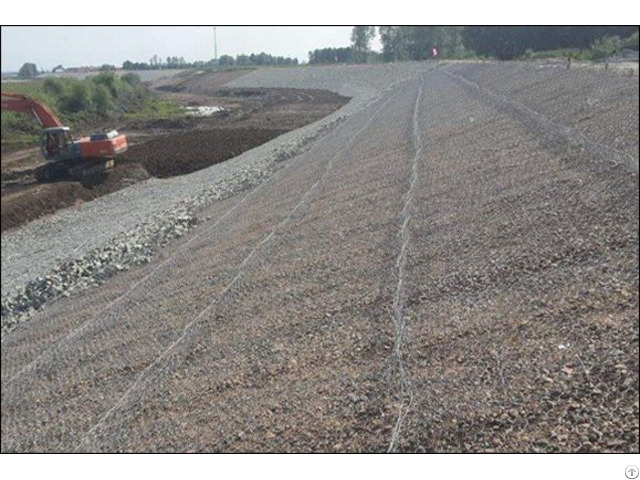

Gabion mattresses are used for river bank and scour protection The mesh shall be securely tied to salvage wires to form rectangular panels which shall be securely wired together to form the completed gabion baskets.

The ties and connections for each gabion basket shall comprise not less than 8% of its total weight, and the fabrication shall be all to the satisfaction of the Engineer.

Gabions shall be made to the sizes as shown on the drawings.

Gabion mattresses shall be made to sizes shown in WAJ Typical details of trenches for sewer pipes and as per MPWH specifications.

Each gabion mattress or compartment of a gabion mattress shall be provided with at least 4 cross- connecting wires.

Gabion Mattress is a double twisted hexagonal woven galvanized steel wire mesh compartmented basket with a rectangular mattress shape.

The compartment or cells of the mattress are of equal size and dimension and are formed by internal diaphragms being placed within the basket providing even distribution of the stone fill throughout the mattress even after structural movement.

Even distribution of the stone fill ensures that the reno mattress maintains intimate contact with the foundation soil.

Gabion Mattresses have been used for channel linings, river training, soil retention, slope stabilization, and other applications successfully throughout the world for over 100 years.

Gabion Mattresses offer many advantages over other types of construction materials.

Advantages offered by double twisted mesh gabion mattresses: are flexibility, durability, strength, permeability, ecology, reliability, longevity, low cost, and an aesthetic appearance.

Flexibility - the most important advantage of using gabion mattresses

Gabion mattress has a flexibility both for the individual unit and the overall gabion structure.

The Double Twisted Hexagonal Mesh construction of the units permits it to tolerate differential settlement without failure.

This property is especially important when a structure is on unstable soil conditions or in areas where scour from wave action or currents can undermine the toe of the structure and cause structural settlement.

Durability - achieved by high strength material and structural integrity

Material: Gabion Mattresses are built from high strength double twisted hexagonal mesh and connected together to create a monolithic mass structure capable of undergoing structural movement without any loss of structural integrity creating a highly durable structure.

Strength - to withstand forces generated by water and earth masses - Strength value in ASTM A975-97

The strength of gabion mattresses is achieved in several aspects:

breaking strength;

the mesh wire tensile strength;

Pull apart resistance strength of the mesh;

Corrosion resistance of the mesh.

Company Contact:

• Posted By: Aerct Gabiony Factory

• Phone: 0086-534-8753002

• Address: Hongqi St. wuxi, Dezhou,China, dezhou , -- Choose state --, China

• Email:

• Website: https://www.gabiony.net

• Business Description: Aerct Gabiony Factory is a customer-driven producer and exporter of gabions and related wire netting products with good performance.

  Our factory is mainly engaged in box gabions mesh: gabions is made of low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire by mechanical weaving, and the box structure made of this net is gabion net cage.

  According to ASTM and EN standards, the diameter of low-carbon steel wire used varies according to engineering design requirements.

  Generally between 2.0-4.0mm, the tensile strength of gabion mesh steel wire is not less than 38kg/m2, the weight of metal coating is generally higher than 245g/m2, and the diameter of edge line of gabion mesh is generally larger than that of mesh wire.

  The length of the twisted part of the double wire shall not be less than 50mm to ensure that the metal coating and PVC coating of the twisted steel wire are not damaged.

  Utilizing a team approach, Aerct delivers excellent customer services and products including but not limited to: hexagonal wire netting, welded mesh gabions, woven hexagonal gabions, gabions baskets, gabion boxes, mattress, flexible soft hillside protection wire mesh gabions as well as other gabion systems.

  Aerct teams work with customers to standardize a manufacturing process, and deliver products and technical services as needed.

  As supplier of wire mesh gabions, Aerct is recognized as a one leader in quality and innovation.

  ISO 9001 certified in 1998.

  Welcome to contact us.
