Gabions Pvc Coated Galvanized Wire Box - China

Gabions PVC Coated Galvanized Wire Box, Gabions for Bridge Construction - Gabions Wire, Galvanised with P.V.C.

Coating

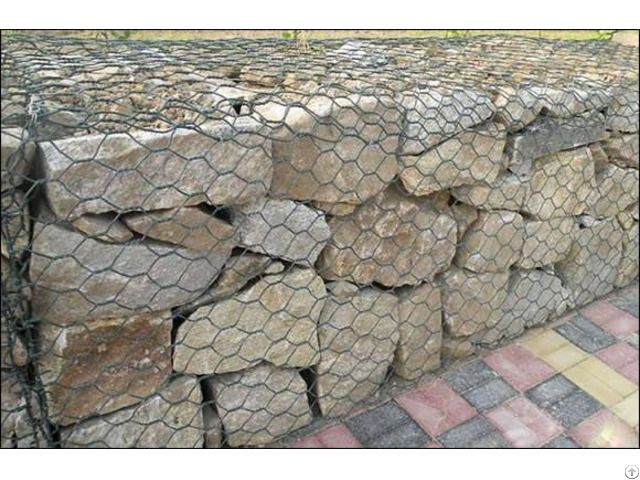

Gabions of galvanized wire boxes, with a P.

V.

C.

coating ( coating of polyvinyl chloride ) for river re-shaping in bridge construction projects.

Technical details of gabions material suitable river protection work which is basic for the bridge construction

Technical details of Gabions wire, galvanizing, galvanised wire with P.V. C.

coating ( properties including tensile strength, elongation, salt water exposure, durometer hardness, creeping resistance, resistance to abrasion and more tests), gabion mesh, selvedges, Diaphragms and End-Panels, binding and connecting wire, filling material, tolerances on wire diameter applied and gabions dimension.

Diaphragms and End-Panels

The diaphragms and end-panels shall be selvedged on the top and vertical sides only.

The end panels shall be attached by twisting the cut ends of the mesh wires at the bottom of the panel about the selvedge on the base of the gabions.

Similarly, the diaphragms shall be attached by twisting the cut ends of the mesh to the twisted joins of the mesh of the gabions.

In each case the force required to separate the panels from the base shall not be less than that required to break the mesh over the same length.

Binding and Connecting Wire

Sufficient binding and connecting wire shall be supplied with the gabions to perform all the wiring operations to be carried out in the construction of the gabion work.

The diameter of wire shall be 2.20 millimetres.

Filling Material

Filling material shall consist of hard, durable stone of minimum dimension 100 millimetres and maximum dimension 250 millimetres and shall be tightly packed to give a minimum of voids.

The top layer of material shall consist of selected smaller stone of not less than 100 millimetres minimum dimension.

Tolerances ( Wire Diamter, Gabions Dimensions)

A tolerance on the diameters of all wire of + 2½ per cent shall be permitted.

The length of the gabions is subject to a tolerance of + 3 per cent and the width of gabions to a tolerance of + 25 millimetres.

All other gabion dimensions are subject to a tolerance of + 3 per cent of the sizes stated in this Specification.

For fabrication of gabions, placement, filling and forming of river banks and aprons, go to next page.

Company Contact:

• Posted By: Aerct Gabiony Factory

• Phone: 0086-534-8753002

• Address: Hongqi St. wuxi, Dezhou,China, dezhou , -- Choose state --, China

• Email:

• Website: https://www.gabiony.net

• Business Description: Aerct Gabiony Factory is a customer-driven producer and exporter of gabions and related wire netting products with good performance.

  Our factory is mainly engaged in box gabions mesh: gabions is made of low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire by mechanical weaving, and the box structure made of this net is gabion net cage.

  According to ASTM and EN standards, the diameter of low-carbon steel wire used varies according to engineering design requirements.

  Generally between 2.0-4.0mm, the tensile strength of gabion mesh steel wire is not less than 38kg/m2, the weight of metal coating is generally higher than 245g/m2, and the diameter of edge line of gabion mesh is generally larger than that of mesh wire.

  The length of the twisted part of the double wire shall not be less than 50mm to ensure that the metal coating and PVC coating of the twisted steel wire are not damaged.

  Utilizing a team approach, Aerct delivers excellent customer services and products including but not limited to: hexagonal wire netting, welded mesh gabions, woven hexagonal gabions, gabions baskets, gabion boxes, mattress, flexible soft hillside protection wire mesh gabions as well as other gabion systems.

  Aerct teams work with customers to standardize a manufacturing process, and deliver products and technical services as needed.

  As supplier of wire mesh gabions, Aerct is recognized as a one leader in quality and innovation.

  ISO 9001 certified in 1998.

  Welcome to contact us.
