Hot Dipped Galvanized Gabion Mesh Cells - China

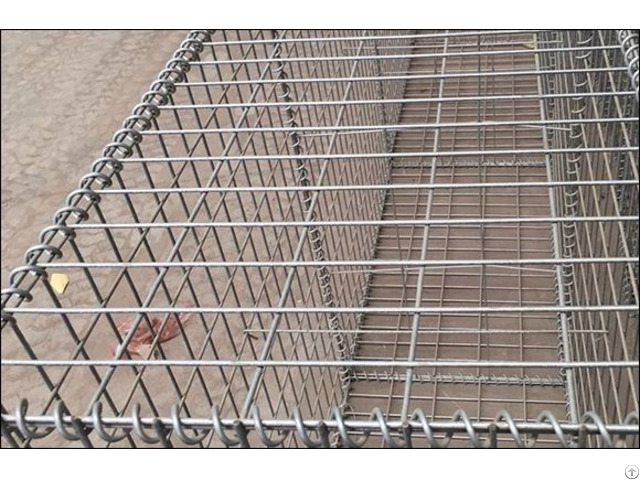

Hot Dipped Galvanized Gabion Mesh Cells

Hot dipped galvanized gabion wire mesh cells are used for building blocks of airport and other projects, also for anti blast barriers in military uses.

The galvanized wire mattress or basket cells are mostly composed of square or oblong opening welded panels.

The gabion cell baskets are in rectangular shape for easy laying and firmed building purpose.

The gabion cell walls are decorative as well as protective.

Major materials for gabions cells are electric galvanized wire, hot-dipped galvanized wire, pvc coated galvanized, Galfan wire 95%zinc -5% Al and 90%zinc -10%Al.

Aerct supplies three types of gabion cells listed as below, we also welcome custom orders.

1, Galvanized Steel Gabion Basket Cells with Rectangular Mesh Holes:

Gabion basket, heavy type: 1000X2000X500mm;

Gabion basket, light type: 1000X500X1000mm.

Gabion cell wire diameter: Galvanized steel wire

Diameter of gabion mesh wire: ≥ 2.00 mm

Gabion Mesh Size or Aperture: 60X80 mm

Hole Shape: Oblong (rectangular)

Hot Dip Zinc coating quantity for galvanized wire: ≥ 2400 g/m2

Lacing wire: All gabions and mattresses cells use a 2.20mm wire diameter lacing wire for binding and fixing together the mesh panels during the erection process.

Hot Dipped Gabion Mesh Stone Filling Cells 2 - Gabion cells with square holes:

Out Size: 1.8X1.8, 1.8X1.2.1.8X0.9m

Mesh size: 5X5cm, 10X10cm

Mesh wire: 1.0-5.0mm

Company Contact:

• Posted By: Aerct Gabiony Factory

• Phone: 0086-534-8753002

• Address: Hongqi St. wuxi, Dezhou,China, dezhou , -- Choose state --, China

• Email:

• Website: https://www.gabiony.net

• Business Description: Aerct Gabiony Factory is a customer-driven producer and exporter of gabions and related wire netting products with good performance.

  Our factory is mainly engaged in box gabions mesh: gabions is made of low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire by mechanical weaving, and the box structure made of this net is gabion net cage.

  According to ASTM and EN standards, the diameter of low-carbon steel wire used varies according to engineering design requirements.

  Generally between 2.0-4.0mm, the tensile strength of gabion mesh steel wire is not less than 38kg/m2, the weight of metal coating is generally higher than 245g/m2, and the diameter of edge line of gabion mesh is generally larger than that of mesh wire.

  The length of the twisted part of the double wire shall not be less than 50mm to ensure that the metal coating and PVC coating of the twisted steel wire are not damaged.

  Utilizing a team approach, Aerct delivers excellent customer services and products including but not limited to: hexagonal wire netting, welded mesh gabions, woven hexagonal gabions, gabions baskets, gabion boxes, mattress, flexible soft hillside protection wire mesh gabions as well as other gabion systems.

  Aerct teams work with customers to standardize a manufacturing process, and deliver products and technical services as needed.

  As supplier of wire mesh gabions, Aerct is recognized as a one leader in quality and innovation.

  ISO 9001 certified in 1998.

  Welcome to contact us.
