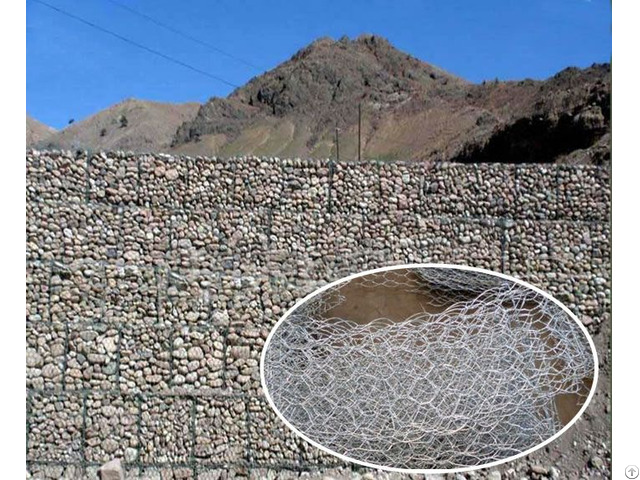

Planted Gabion Walls - China
price: contact company for price
Wire Mesh for Gabions
Wire mesh shall comply with the requirements of SAnS 1580 or equivalent.
Wire mesh shall be mechanically pre-fabricated to become a uniform hexagonal woven mesh wherein the joints are formed by twisting each pair of wires through three half-turns (commonly known as double twist), in such a manner that unravelling is prevented.
The tightness of the twisted joints shall be such that a force of not less than 1.7 kN is required when pulling on one wire in order to separate it from the other wire, provided each wire is prevented from turning under the applied forces, and the wires are all in the same plane.
The diameter of the wire and the size of mesh used shall be as follows: Wire Diameter (mm) Type of Gabion Mesh Size (m m)
Mesh Wire Selvedge
Gabion Boxes 100 x 120 2.7 3.4
Reno Mattress 80 x 100 2.2 2.7
We make inspections and tests to ensure that the materials supplied are in accordance with this specification.
And all materials comply with the requirements of this specification.
Company Contact:
- Posted By: Aerct Gabiony Factory
- Phone: 0086-534-8753002
- Address: Hongqi St. wuxi, Dezhou,China, dezhou , -- Choose state --, China
- Email:
- Website: https://www.gabiony.net
Published date: February 16, 2022
- Business Description: Aerct Gabiony Factory is a customer-driven producer and exporter of gabions and related wire netting products with good performance.
Our factory is mainly engaged in box gabions mesh: gabions is made of low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire by mechanical weaving, and the box structure made of this net is gabion net cage.
According to ASTM and EN standards, the diameter of low-carbon steel wire used varies according to engineering design requirements.
Generally between 2.0-4.0mm, the tensile strength of gabion mesh steel wire is not less than 38kg/m2, the weight of metal coating is generally higher than 245g/m2, and the diameter of edge line of gabion mesh is generally larger than that of mesh wire.
The length of the twisted part of the double wire shall not be less than 50mm to ensure that the metal coating and PVC coating of the twisted steel wire are not damaged.
Utilizing a team approach, Aerct delivers excellent customer services and products including but not limited to: hexagonal wire netting, welded mesh gabions, woven hexagonal gabions, gabions baskets, gabion boxes, mattress, flexible soft hillside protection wire mesh gabions as well as other gabion systems.
Aerct teams work with customers to standardize a manufacturing process, and deliver products and technical services as needed.
As supplier of wire mesh gabions, Aerct is recognized as a one leader in quality and innovation.
ISO 9001 certified in 1998.
Welcome to contact us.
