Ptc Effect Heating Element - China

An Warm Heating Mats+ Insulation board + Thermostats (HMI)+ Transformer + Wire Features Include:

Durable – The thin, flexible polymer element is extremely durable.

Safe heating System - Work with safe voltage (24V-36V) DC, zero radiation, waterproof.

Self-regulating and comfortable temperature – As the PTC heating element gets warmer less electricity passes through it, preventing the element from overheating and optimizing energy-efficiency.

No radiation – DC low voltage transmission

Powering saving – 50% less than the electric heating wire and the electric heating film scheme, the power of the 50% less than the electric heating wire and the electric heating film scheme is 120W/m2, but AN WARM Floor Heating System is 55W/m2

High pavement efficient, zero after-sale cost.

The customer can achieve DIY, pave this system by themselves, it can pave 600 m2 per day with testing working hour data.

Without any dilatation expense, it will take 120 W/m2 with heat transfer, electric heating film, electric wire scheme.

However, AN WARM Floor Heating System is 55W/m2, without any tripping or the overloading phenomenon of wire fusing.

Versatile – An Warm Heating Mat is compatible with any floor covering including, tile, stone, wood, laminate, resilient and carpet.

Easy to Install – The heating element can be rolled out and cut to size on the job site.

It can also be nailed or stapled through, facilitating quick, easy installation.

Remote Intelligent Control- An Warm system can be remote controlled by mobile.

And each room can be independently controlled.

Maintenance Free-The system can run more than 60 years without any maintenance.

An Warm Heating Mats:

The low-voltage PTC Heating system features 1.2mm(3/64 inch) thickness and 340mm(13-3/8inches) wide self-regulating heating mats that is easy to install, maintenance free and energy efficient.

AN Warm Heating Mat Specifications:

Model AN Warm

Heating Element Type 120V, 240V Output Positive Temperature Coefficient (PTC) semi-conductor polymer Width 13-3/8 inches (340 mm) Length Cut to order Maximum Element Length 98-1/2 feet (30m) Weight 0.28lb/ft (0.42 kg/m) Thickness 3/64-inch (1.2 mm) Output Wattage (24-36VDC)：50w/m@68°F (20°C) 55w/m@86°F (30°C) Nominal Resistance ：18 ohms/m @ 68°F (20°C) Primary Draw on 220V： 0.18 amps/m Thermostat Specifications

Functions 2.0-inch display screen with easy interactive touch control and remote control, easy scheduling method Power Supply 120/240 VAC 50/60 Hz Maximum Switching Current 15 Amp max.

resistive load Accuracy ±1°C

Temperature Control Range 41 to 100°F (5 to 38°C) Ambient Range 32 to 100°F (0 to 38°C) Temperature Sensor NTC Temperature Sensor

Wireless Connection WiFi Connection

Control Method Manual and Remote Control

Remote Control APP Control (ISO and Android) Warranty Information:

AN Warm Heating Mat: 50-year limited warranty.

Thermostat: 2-year limited warranty.

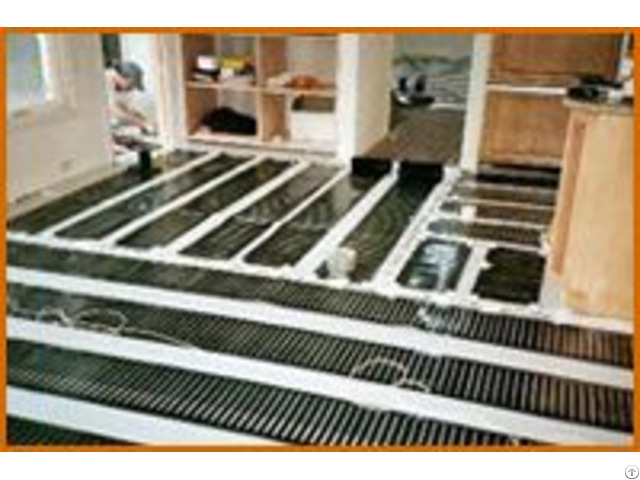

AN Warm Heating System Components Floorheat mat Floorheat mat can be installed under just about any type of floor surface.

The floorheat mat is thin, flexible and very durable.

It can be nailed or stapled to the sub-floor, making installation quicker and easier than other in-floor heating systems.

The heating element is self -regulating, meaning that when the ambient temperature rises, the electrical resistance in the heating element increases and the consumption of electricity decreases.

So, as the material gets warmer, less electricity passes through the heating element, ensuring that the element will not overheat, making this one of the most energy-efficient systems on the market.

Transformer Transformer contains the brains of the system, along with the step down transformer, which converts the line voltage (220 V) to the low voltage (60 V or less).

The advanced circuitry in the power unit regulates the system, assuring safe, accurate, and optimal performance.

FloorHeat operates on low-voltage and does not require a ground fault switch.

It is normally connected to a 24 voltage transformer, but can also be run by solar or wind-power sources.

The radiant floor heating system is maintenance free, easily zoned and extremely energy efficient.

Thermostats Our 100 percent automated floor heating thermostats save energy and allow you to have the radiant floor heating system turn on when desired.

Thermostats are available that feature a sensor in the floor to measure floor temperature or a sensor that senses the temperature of the room (air).

The

AN WARM electronic power controller features a relay output for infinitely variable setting of requested heating output, up to 10A.

The low-voltage AN WARM heating system allows you to reduce the usage of your primary heating system to facilitate greater energy savings while lowering your monthly heating bills.

Company Contact:

• Posted By: Beijing Shilihe Company

• Phone: +8615737319187

• Address: Haidian district zaojunmiaojia 16, Beijing , China

• Email:

• Business Description: We are specialized in floor heating system, we can provide the whole system, including heating mats, thermostat (temperature controller, manual control and remote control), transformer (up to 5, 000 W), cables, insulation board, and other installation accessories.

  We are original manufacturer for An Warm underfloor heating product, equipped with R&D center for product development.

  Our product has been used in Norway.

  Sweden for 37 years, and in the U.

  S for 12 years.
