Pvdf Coated Aluminum Composite Panel - China

Aluminum Thickness: 0.20-0.50mm

Panel Thickness: 2mm-8mm

Core Material: Breakable; Unbreakable; B2 Fire Proof; A2 Fire Proof

Painting Type: PVDF Coating has a better resistance from color fading, and has a warranty for about 15 years, and is quite widely used in CBD wall cladding, airport wall cladding and so on

Brand OEM acceptable (but need to be legal)

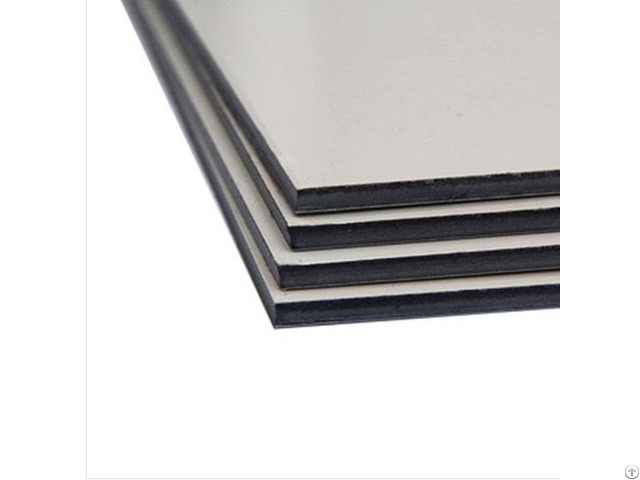

Aluminum Composite panel(ACP)

1 - Standard:

according to GB/T 17748-1999 standard

2 - Material:

a) Front: aluminum alloy sheet coated with fluoro-carbon resin

(PVDF) and polyester resin (PE) roasting painting

b) Core: nontoxic polyethylene.

c) Back: aluminum alloy sheet coated with polyester resin painting

d) Surface finish: treated with PVDF and PE resin rolling roasting .

coating

e) Surface coating thickness: 30um

f ) Aluminum alloy sheet thickness: 0.1mm, 0.12mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.45mm, 0.5mm

3 - Dimensions:

a) Thickness: 3mm, 4mm

b) Width: 1220mm 1500mm.

c) Length: 2440mm, 3200mm, 4000mm, 5000mm (max: 6 meter)

d) Weight: 5.5kg/sqm based on 4mm thickness.

e) Standard size: 1220 x 2440mm

f) Nonstandard sizes are available according to requirement of customers

4 - Application scope:

1) Building exterior curtain walls.

2) Decoration and renovation additions for old buildings

3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies

4) Shop door decorations

5) Advertisement board display platforms and signboards

6) Wallboards and ceilings for tunnels.

7) Industrial materials, materials for vehicles and boats
