Welded Mesh Gabions Cage - China

Gabiony -Welded Mesh Gabions Cage-Woven Mesh Gabion Box

Gabiony is an element in the form of blocks made of wire mesh nettings of twisted hexagonal opening or welded square or rectangular openings, which is filled with natural stone for river, hill protection or construction.

The gabions shall be unfolded on the ground and stretched to the maximum extent possible while ensuring that all creases are in the correct positions for forming the box.

Any cutting required shall be carried out so that the cut ends of wire are a minimum of 50 millimetres from the twisted joins.

After stretching and cutting as required the side and end panels shall be lifted so that the tops of all sides are level.

Any loose ends of wire protruding above a level plane at the top or from the corners shall be bent down into the box.

Corners shall be fastened securely and the box shaped prior to commencing any binding.

Product Description:

Gabiony or gabion, is made of steel mesh with the type 8x10 mesh.

The diameter of the wire mesh has normally two types: 2.7 or 3.0 mm.

The gabion element is in the shape of block or regular cube size.

These special wire bins are made of robust wire, filled with the vibrations at the quarry and transport are accompanied by the lifting straps.

Technical Specifications:

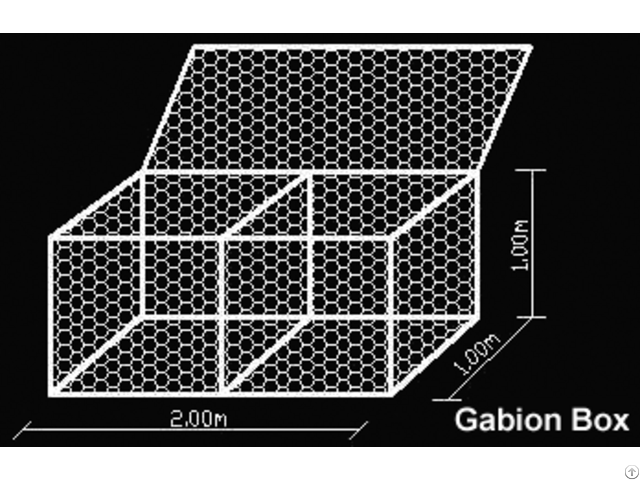

Gabions sizes: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m.

Custom orders available.

Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.

Company Contact:

• Posted By: Aerct Gabiony Factory

• Phone: 0086-534-8753002

• Address: Hongqi St. wuxi, Dezhou,China, dezhou , -- Choose state --, China

• Email:

• Website: https://www.gabiony.net

• Business Description: Aerct Gabiony Factory is a customer-driven producer and exporter of gabions and related wire netting products with good performance.

  Our factory is mainly engaged in box gabions mesh: gabions is made of low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire by mechanical weaving, and the box structure made of this net is gabion net cage.

  According to ASTM and EN standards, the diameter of low-carbon steel wire used varies according to engineering design requirements.

  Generally between 2.0-4.0mm, the tensile strength of gabion mesh steel wire is not less than 38kg/m2, the weight of metal coating is generally higher than 245g/m2, and the diameter of edge line of gabion mesh is generally larger than that of mesh wire.

  The length of the twisted part of the double wire shall not be less than 50mm to ensure that the metal coating and PVC coating of the twisted steel wire are not damaged.

  Utilizing a team approach, Aerct delivers excellent customer services and products including but not limited to: hexagonal wire netting, welded mesh gabions, woven hexagonal gabions, gabions baskets, gabion boxes, mattress, flexible soft hillside protection wire mesh gabions as well as other gabion systems.

  Aerct teams work with customers to standardize a manufacturing process, and deliver products and technical services as needed.

  As supplier of wire mesh gabions, Aerct is recognized as a one leader in quality and innovation.

  ISO 9001 certified in 1998.

  Welcome to contact us.
