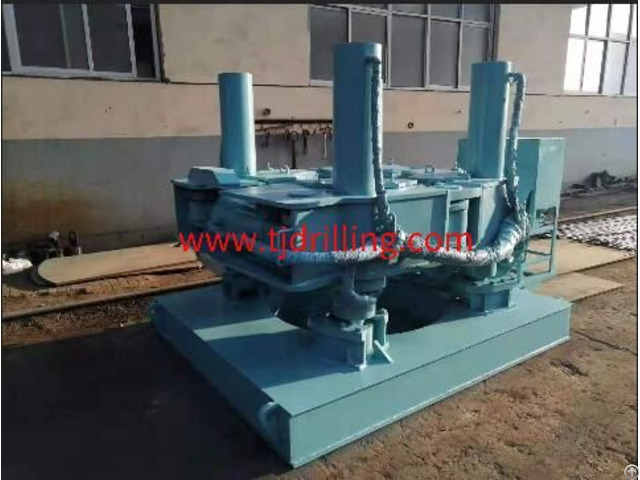

600mm Diaphragm Wall Round Stop End Pipe Extractor Used For Pile Foundation - China

Our 24inch casing extractor made for drawing our water well drill pipe, casing pipe, casing tube, diameter from 8inch-24inch, 355mm-610mm lift force from 40ton-400ton They are hydraulic clamping machines to pull out casing pile pipe or similar pipe.

Pull out casing pile pipe or similar pipe.

They may be coupled to the base pile machine by means of telescopic boom or they can work alone with its own hydraulic power pack specification unit B600 extract cylinder pc 4 Cylinder max stroke mm 800 Suitable max casing diameter mm 610 Max extract force T 200 Clamp force T 90 weight Kg 3500 oversize(L*W*H) m 2.6x1.35x1.6 2 SPECIFICATION OF ELECTRICITY MOTOR NAME parameter remark Max pressure MPa 30 Working pressure MPa 25 Hydraulic pump flow L/min 90 Power KW 30 Oil tank size L 450 Transport size mm 1.70×1.4×1.4 L×W×H Weight (not include oil)kg 1000
