8x4 16 Ton Straight Arm Truck Mounted Crane - China

price: 63000.00 Dollar US$

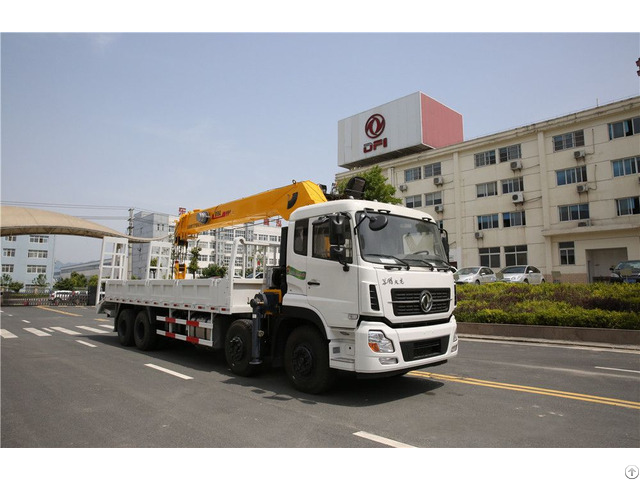

8x4 16 Ton Straight Arm Truck Mounted Crane

Products Photos Catalog 8x4 Ton Straight Arm Photos Catalog

Chassis configuration: Dongfeng Tianlong special chassis for front four rear eight truck cranes, 8x4 drive, D310 (small change) flat-top cab, Dongfeng Cummins 315 horsepower (ISL9.5-315E51A) engine Wheelbase 1850+ 4600+ 1350mm

All-aluminum 580L main fuel tank, Shaanxi 12-speed 12JSD160TA gearbox, 5T dual front axle maintainable wheel ends, 10T single-stage reduction dual rear axle.

Top-loading configuration: top-loading 16-ton five-section boom crane.

Lifting height 20.5 meters, working radius 18.5 meters, high-altitude seat operation, 360 degrees 　Full rotation, full hydraulic pressure; boom extends 8.5 meters, lifting 4.2 tons.

The boom extends 11.5 meters and lifts 3.2 tons.

The boom extended 14.5 meters and lifted 2.2 tons.

Cargo box 8.4 meters.

　Optional configuration: According to customer needs, Sanyi, stone coal, XCMG, Hongchang Tianma and other brands of 10 tons, 12 tons, 14 tons, 16 tons of straight arm or folding arm cranes can be selected; Fixed rear legs, single-chamber hydraulic rear legs, double-chamber hydraulic legs, empty seats, various fixtures, punching devices, remote control devices, cabin materials and thickness, ladders, etc.


Company Contact:


  • Phone: 13872886372

  • Address: Chengli Automobile Industrial Park, South Suburb, Suizhou City, Hubei Province, China, suizhou , Hubei , China

  • Email: Email


Published date: July 18, 2020

  • Business Description: Chengli Special Automobile Co., Ltd. custom manufactures various types of fuel oil tank trucks, vacuum sewage suction trucks,truck with cranes, wrecker tow trucks, garbage trucks, fire fighting trucks, ambulances, van trucks and special operations vehicles, and semi-trailers for dangerous goods transportation.
