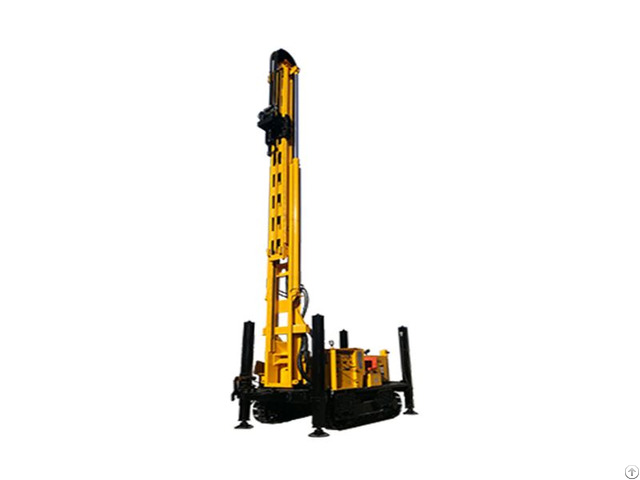

JKS600S Crawler Mounted Telescoping Mast Drill Rig

Crawler Mounted Versatile Well Drilling Rig

borewell drilling equipment The rig is able to place casing of 6 meters.

Rated Drilling Depth

600m

Site Condition

It is mainly applicable to the drilling process of wells, monitor boreholes, geothermal boreholes and defense project.

Product Features

JKS600S crawler mounted telescoping mast drill rig is a new, efficienct, multifunctional hydraulic well drilling rig, mainly applicable to the drilling process of well, monitor boreholes, geothermal boreholes, dam and reinforced base and defense project.

The rig is able to handle size up to 6 meters

When drilling in the rock layer, the rig adopts DTH percussive hammer for penetration and compressed air for cleaning, with high penetration speed.

In loose rock, the rig employs hammer and casing as well as mud drilling.

Hydraulic supporters used facilitate the rig erection on site without crane.

Rated Drilling Depth 600m

Borehole Diameter 140~350mm

Engine Power 132kW

Max Lifting Force 32T

Axial Pressure ±10T

Lifting Force of Small Winch 1.5T

Rotation Torque 9000N.

m

Rotation Rate 0～35/70rpm

Feeding Stroke 7000mm

Hydraulic Supporting Leg Stroke 1650mm

Lifting Rate 0~15m/min

Grade Ability 15°

Dimension (L x W x H) 7300mm x 2250mm x 2850mm

Working Size (W x H) 3250mm x 12900mm

Weight 15T

Hydraulic Generator (optional) 24kW/380V

Flow of Centrifugal Mud Pump (optional) 1500L/min

Flow of Plunger Mud Pump (optional) 1000L/min We are dedicated to providing our customers with the best quality and high–tech products.

Zhangjiakou Xuanhua Jinke Drilling Machinery Co., Ltd (JK Drilling) is a large enterprise specialized in development and manufacture of all kinds of DTH Drilling Equipment.

The major products include JK series DTH rock drilling rigs and JKS series DTH well drilling rigs.

Company Contact:

• Posted By: Jinke Drilling Machinery Co., Ltd

• Phone: 86-313-3884625

• Address: No.142, Zhonglou Street, Xuanhua District, Zhangjiakou, Hebei Province,China , Zhangjiakou , Hebei , China

• Email:

• Website: https://www.jkdrilling.com

• Business Description: We are dedicated to providing our customers with the best quality and high–tech products.

  Zhangjiakou Xuanhua Jinke Drilling Machinery Co., Ltd (JK Drilling) is a large enterprise specialized in development and manufacture of all kinds of DTH Drilling Equipment.

  The major products include JK series DTH rock drilling rigs and JKS series DTH well drilling rigs.

  The DTH rock drilling rigs are widely used in blasthole drilling of mining, hydropower, transportation and defense projects, as well as harbor and channel construction; DTH well drilling rigs are specialized in drilling the boreholes of large diameter and depth, for instance, water well drilling and geothermal well drilling.



  JK Drilling has established a mature and completed after-sales service team, who can provide the strong supports to clients and customers from both domestic and abroad.

  In drilling rig industry, JK Drilling's innovations have been relentless.

  It's dedicated to manufacturing the best quality and most innovative rigs for customers.

  JK Drilling boasts its R&D center, in which all kinds of drill rigs have been conceived and designed.

  In addition, JK Drilling is certified to ISO9001, ISO14001 and OHSAS18001.

  JK Drilling is located in Xuanhua, well known as the manufacture base of drilling rigs of China.

  Xuanhua enjoys its geographical convenience, bordering Beijing to the east, Shanxi Province and Inner Mongolia Autonomous Prefecture to the west.

  The Xuanhua-Datong expressway, Beijing-Zhangjiakou expressway and Dandong-Lhasa expressway converged in Xuanhua; Beijing–Baotou Railway passes through Xuanhua; highway 110, 117 and 207 links Xuanhua with other areas of China; From Xuanhua to Capital Airport of Beijing, the distance is 150 km.

  Recent years, JK Drilling's sales volume has been increased rapidly, its main products, Crawler Mounted Hydraulic DTH Rock Drilling Rig series, occupying 60% of domestic market share.

  So far, JK Drilling has established long-term cooperation with domestic customers and have exported its products to upwards of 30 countries.
