Cabinet Making Machinery For Sale - China

Cupboard making machine is widely used in home decoration, shop and office furniture.

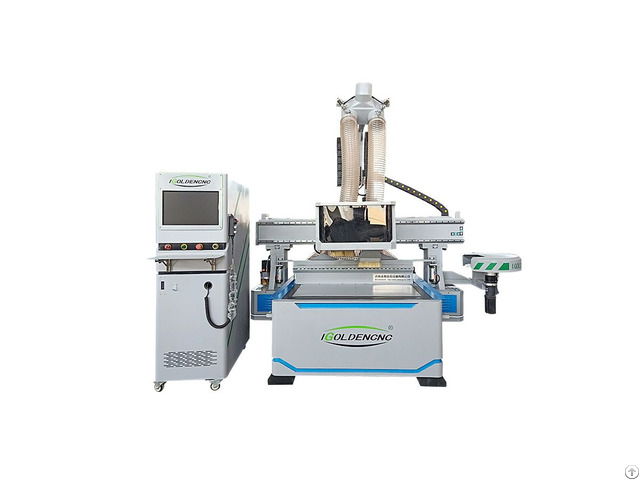

With fast material automatic nesting, loading and unloading, multi-function drilling with vertical, side, single and group drilling, etc This CNC router cabinet making machine is a high-efficiency machine, it is controlled by Syntec CNC controller, this machine with 9kw(12HP) spindle is powerful enough for high speed cutting.

And the carousel type tool magazine is driven by a servo motor, which support fast tool change and high precision tool change.

This CNC router cabinets machine is with an optional Italian drilling bank for fast hole drilling.

cabinet Making Machinery Features of cabinet making machine 1 - Equipped with 12 linear tool magazines, it can save tool changing time and improve processing efficiency.

2 - Adopting the Taiwan Baoyuan system with a handle, it has the characteristics of good compatibility and convenient operation.

3 - Full-page vacuum adsorption table, divided into 7 zones for adsorption, strong adsorption, no running board during processing; 4 - Equipped with soft and hard limit, it has the features of high processing safety.

Samples of cabinet making machine 1 - Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2 - Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3 - Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

TBI High-Precision Ball-screw Transmission (Taiwan) 1) Higher efficiency than traditional ball screws.

2) Gothic groove shape, the shaft direction clearance can be adjusted to a minimum and can be easily transferred.

3) The internal circulation method is applicable to many different scenes, and the circulation method is selected according to its own needs.

4) Use rigorous materials, high heat treatment and processing technology to supply durable products.

Patent design 1: 4 gear reducer + Stepper 450B driving motor Patent design 1: 4 gear reducer install on the driving motor, makes the motor is more powerful, and having a longer time service life.

The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed.

Stepper motors are well proven high degree of reliability.

Model 1325 CNC Nesting Machine Working area 1300*2500mm Spindle ATC 9KW HQD air cooling spindle Inverter Fuling Motor Dorna servo motors Driver Dorna servo driver Control System Taiwan LNC control system Table Double layer Vacuum table + position cylinder + secondary dust collection + Pusher system Oil lubrication Automatic lubrication Limit Omron limit Transmission XY axis Taiwan helical rack Z axis Taiwan ball screw Rail X, Y, Z axis Germany Square guide rail Screw Z axis TBI ball screw Bed Thick steel welded big square tube Gangry Strong frame Pillars Steel pillar(Suitable for high-end customers) Cabinet Independent cabinet Voltage 3 phase/380V Color As requirement Tools 1 box(10 pieces)
