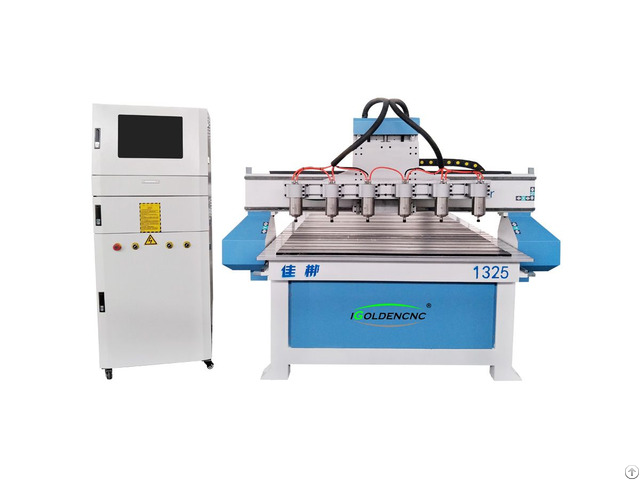

Cnc Wood Carving Machines - China

This cnc wood carving machines is very suitable for furniture bulk production, like sofa legs, table legs, chair legs, bed legs, bed head, stair handrails, prop guns, wooden column cylinders.

it also can make 3d small statues, figures, sculptures, 360 degree human body, Buddhist statues… etc.

cnc wood carving machines Features of cnc wood carving machines:

1 - The CNC Kit of the portable rotary device makes it good at cylinder wood 3D Carving, such as chair frames, stair frames, roman columns, columns, etc.

This device is portable, take it over when rotary woodworking finished.

2 - Linear tool magazine holds 8 bits, automatic tool changing without Manual operation, more effective, and energy saving.

3 - Adopting Japan Panasonic servo motor to ensure the machine work with fast speed and high efficiency.

4 - Multi-usage of 3D wood Carving, Cutting, Sculpture.

5 - If you need a complex 3D Carving Machine, please visit: Automatic wood carving machine vs hand wood carving machine The main skills required: The automatic wood carving machine requires skills of CNC operation, 3D design; The hand wood carving machine requires art creation skills, machine or tools operation skills; Cost: CNC Carving costs more money at buying the machine, but saves time because it is more efficient and has a high output.

If you have researched a lot and decided to start a business, the CNC machine is the best investigation.

It is the best choice for commercial products.

Hand wood carving machine, such as wood lathe, wood milling tools, hand router, it takes more time at the learning stage of art, but the machines or tools are at low cost.

This is the best choice for a small amount of production, or unique artwork making and hobby crafts.

If you love creating and don't have a clear plan and don't want to spend too much at first, then hand wood carving machine is not a bad choice.

Remember that, just do it, and then you will find many chances.

CNC wood carving machines applicable: Wood industry, furniture, woodworker, relief, Advertising industry, breastplate, doorplate, Art-craft industry, Double-color board, bamboo crafts.

3 - Applicable material: Wood, organic glass, PVC board, KT board, Acryl, MDF board, plastic, metal/aluminum, wood waves, Indoor & our door engraving/carving/cutting , etc.

CNC wood carving machines Advantage: 1 - BCM1325S cnc router machine uses European design, comply with Europe and CE standard.

For whole cnc router machine, we will provide 3 years warranty, all life time technical and oversea engineer service.

2 - Machine body is up to 8mm, to ensure machine have a long life time, and the bed structure is triangular and more stable.

Use car-specific paint on the outside of the machine to better protect the bed and prevent rust.

3 - BCM1325S machine uses inner control cabinet design, It can make sure non-professional worker touch machine electrical to make sure safety, and save space in your factory.

4 - Z axis uses Taiwan TBI ball screw transmission, with high accuracy Delta inverter from China Taiwian, well control frequency and adjust spindle speed, keep bigger torque when speed of spindle lower or higher.

Auto lubrication system: Automatic lubrication, no manual operation required Detailed Images: XY Helical rack and pinion The Alpha ABS Series CNC Router uses precision helical gear racks on the X and Y axes.

The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability.

The precision gearbox is directly coupled to the stepper motor and pinion.

This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.

Drive Motors The ABS series CNC Router utilizes brushless micro-stepper motors.

These motors require no regular maintenance, therefore reducing any maintenance downtime.

Drive Motors The ABS series CNC Router utilizes brushless micro-stepper motors.

These motors require no regular maintenance, therefore reducing any maintenance downtime.

Description Parameters Model IGW- 1325-1-6 Working size 1300*2500*200mm(also customise) Spindle 1.5KW *6 water cooling spindle Inverter Fuling inverter Motor Stepper motor Driver Stepper driver System NC studio Table Aluminum T slot table Rail Taiwan Hiwin X, Y axis25, Z axis 20 Transmission Gear rack Ball screw Z axis TBI ball screw Bed Thick welded big square tube Gangry Steel beam Cabinet Independent cabinet Voltage 380V/220V
