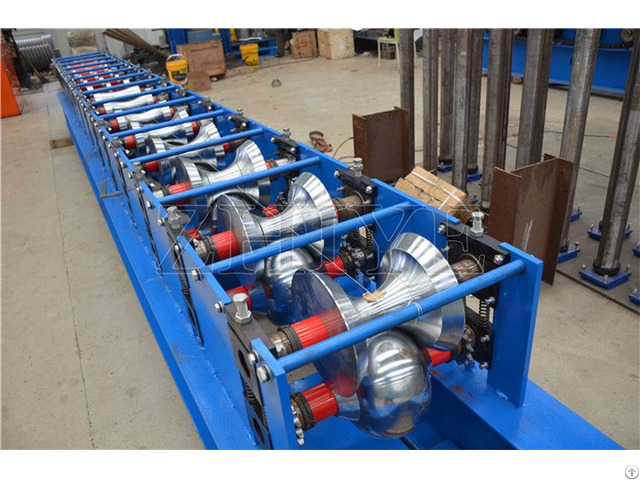

Colour Steel Ridge Cap Roll Forming Machine - China
price: 8000.00 Dollar US$
Product Description: Ridge Cap produced by this kind of machine are looked beautiful, elegant and noble.
It can be widely used in garden-style factory, traveling scenic spots, hotel, exhibition center, villa, civil construction and so on.
Features of this: lower cost high efficiency reliable working low energy consumption.
Technical parameter of product line:
Material of cutting:
Cr12
Steel Thickness:
0.5mm-0.6mm
Charge in width:
1000mm
Line speed:
8m/min-12m/min
Rolling rows:
16rows
Rolling diameter:
70mm
Dimensions:
15m*1.9m*1.4m
Weight:
8T
Power:
4Kw
Roller material:
45# steel
Working flow:
Decoiling the sheet--sheet guiding---roll forming---measure length---cutting the panel---panels to the supporter Packaging & Shipping:
1, We have professional technicians for loading Guaranteed the goods load into container without any damage.
2, Nude, with waterproof cloth and stow-wood.
Imported computer control system packed with waterproof cloth and card board.
3, 30 working days after received the deposite Our service:
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $150/days Tel: +86 18833785938
WhatsApp/Viber: +86 18833785938
Company Contact:
- Phone: +8618833785938
- Address: 104 national Road in Cangzhou, Botou City, CangZhou , HeBei , China
- Email:
Published date: August 3, 2017 - Modified date: August 3, 2017
- Business Description: Our main products are: roofing/wall panel roll forming machines, tile roll forming machines, C/U/Z purlin roll forming machines, floor decking roll forming machines, steel frame truss roll forming machines, pipe roll forming machines.
