Crawler Mounted Versatile Well Drilling Rig - China

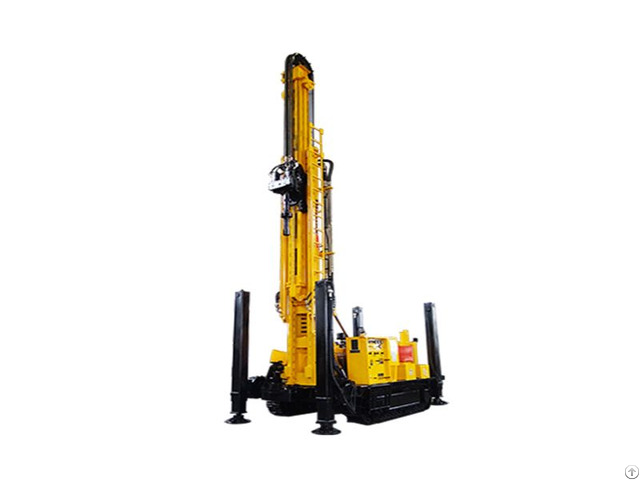

JKS380S Crawler Mounted Telescoping Mast Drill Rig

Crawler Mounted Versatile Well Drilling Rig

Applicable to various working site.

Rated Drilling Depth

300m

Site Condition

It is mainly applicable to the drilling process of wells, monitor boreholes and geothermal boreholes.

Product Features

JKS380S crawler mounted telescoping mast drill rig is a new, efficient, multifunctional hydraulic well drilling rig, mainly applicable to the drilling process of well, monitor boreholes and geothermal boreholes.

When drilling in the rock layer, the rig adopts DTH percussive hammer for penetration and compressed air for cleaning, with the penetration speed being dozens of times quicker than conventional rotation rigs.

The rig is able to handle casing size up to 6 meters.

In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility suiting for all kinds of complex geological conditions

Hydraulic supporters used facilitate the rig erection on site without crane.

Rated Drilling Depth 380m

Borehole Diameter 105～350mm

Engine Power 92kW

Maximum Lifting Force 18T

Axial Pressure ±8T

Lifting Force of Small Winch 1.5T

Rotation Torque 8500N.

m

Rotation Rate 0～40/80rpm

Feeding Stroke 6800mm

Hydraulic Support Leg Stroke 1650mm

Lifting Speed 0～18m/min

Centralizer Height 0.8m

Grade Ability 15°

Hydraulic Generator 24kW/380V (optional)

Dimension (L x W x H) 6200mm × 2080mm × 2650mm

Weight 10.5T We are dedicated to providing our customers with the best quality and high–tech products.

Zhangjiakou Xuanhua Jinke Drilling Machinery Co., Ltd (JK Drilling) is a large enterprise specialized in development and manufacture of all kinds of DTH Drilling Equipment.

The major products include JK series DTH rock drilling rigs and JKS series DTH well drilling rigs.

Company Contact:

• Posted By: Jinke Drilling Machinery Co., Ltd

• Phone: 86-313-3884625

• Address: No.142, Zhonglou Street, Xuanhua District, Zhangjiakou, Hebei Province,China , Zhangjiakou , Hebei , China

• Email:

• Website: https://www.jkdrilling.com

• Business Description: We are dedicated to providing our customers with the best quality and high–tech products.

  Zhangjiakou Xuanhua Jinke Drilling Machinery Co., Ltd (JK Drilling) is a large enterprise specialized in development and manufacture of all kinds of DTH Drilling Equipment.

  The major products include JK series DTH rock drilling rigs and JKS series DTH well drilling rigs.

  The DTH rock drilling rigs are widely used in blasthole drilling of mining, hydropower, transportation and defense projects, as well as harbor and channel construction; DTH well drilling rigs are specialized in drilling the boreholes of large diameter and depth, for instance, water well drilling and geothermal well drilling.



  JK Drilling has established a mature and completed after-sales service team, who can provide the strong supports to clients and customers from both domestic and abroad.

  In drilling rig industry, JK Drilling's innovations have been relentless.

  It's dedicated to manufacturing the best quality and most innovative rigs for customers.

  JK Drilling boasts its R&D center, in which all kinds of drill rigs have been conceived and designed.

  In addition, JK Drilling is certified to ISO9001, ISO14001 and OHSAS18001.

  JK Drilling is located in Xuanhua, well known as the manufacture base of drilling rigs of China.

  Xuanhua enjoys its geographical convenience, bordering Beijing to the east, Shanxi Province and Inner Mongolia Autonomous Prefecture to the west.

  The Xuanhua-Datong expressway, Beijing-Zhangjiakou expressway and Dandong-Lhasa expressway converged in Xuanhua; Beijing–Baotou Railway passes through Xuanhua; highway 110, 117 and 207 links Xuanhua with other areas of China; From Xuanhua to Capital Airport of Beijing, the distance is 150 km.

  Recent years, JK Drilling's sales volume has been increased rapidly, its main products, Crawler Mounted Hydraulic DTH Rock Drilling Rig series, occupying 60% of domestic market share.

  So far, JK Drilling has established long-term cooperation with domestic customers and have exported its products to upwards of 30 countries.
