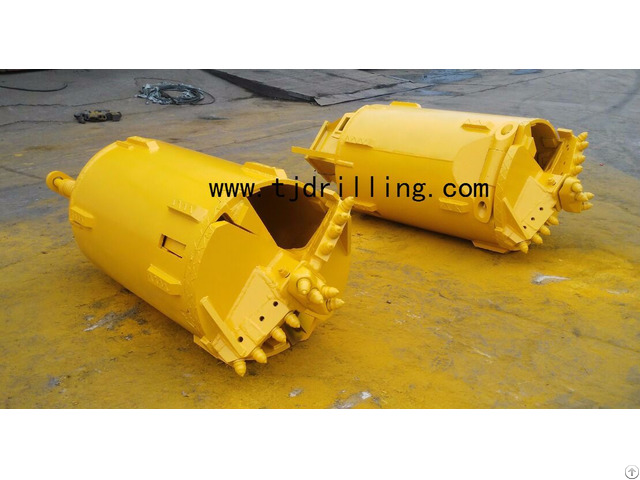

Double Cut Rock Drilling Bucket - China

Diameter?600~3000?mm?baue r, soilmec, casagrande type

Apply rock?Dense sand, granvle and medium up to weak Diameter

(mm) Bucket D1

(mm) Height H

(mm) Bucket height H1

(mm) Flat teeth N.O. Bullet teeth NO.

600 540 2000 1200 2 10

800 700 2000 1200 4 14

1000 900 2000 1200 6 18

1200 1100 2000 1200 7 20

1500 1400 2000 1200 9 28

1800 1700 2000 1000 11 32

2000 1900 1600 800 13 34

2200 2100 1600 800 15 36

2500 2400 1500 700 17 40

3000 2900 1500 700 21 46
