Enclosed Conductor Copper Bus Bar For Overhead Crane Power Distribution - China

price: 10.00 Dollar US$

Enclosed Conductor Copper Bus Bar For Overhead Crane Power Distribution

Products Photos Catalog Enclosed Conductor Photos Catalog

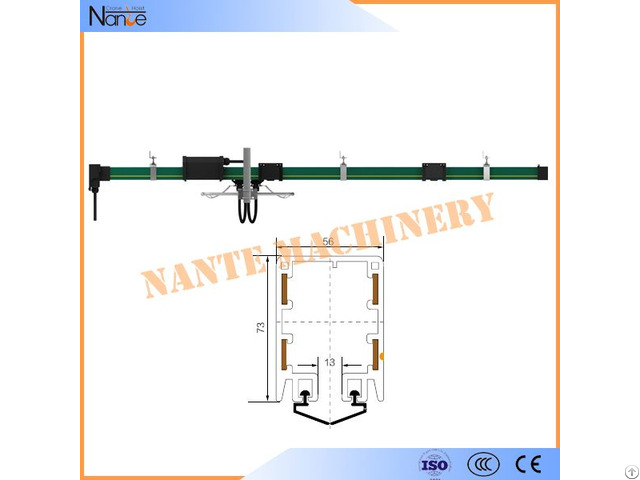

Specifications of HFP52 Multi-pole Conductor Rail 1 - Application: crane, power plants, electrical production 2 - CE, CCC, ISO9001 Application The ranges of applications of HFP Power Rail Enclosed Conductor System

Overhead and elongated tracks for cranes.

Electric hoists, electric tools, stacking systems.

Electric tools

Other applications for supplying power to moving power load.

Design features Compact arrangement, corrosion resistance and simple assembly are its essential features.

Housing

Color green, PVC housing for 4 conductors.

Standard section 4 m.

Other sections are available.

The ground conductor is identified by international color code.

Phase reversing prevented by design of the collector and housing.

Current collectors

The current collectors are made of re-inforced polyester fiberglass, for high strength and light weight.

Spring loaded carbon brushes maintain uniform contact.

Connecting cables and hinged or flexible towing arms included.

Double Current collectors for transfer applications and higher amperage.

Couplings

Through PVC joint caps.

Feed Sets

Line feeds or end feeds.

End caps

The open ends of the powerail are closed by end caps for HFP.

Hangers

Standard brackets for powerail attachment to crane girders are available.

Powerail with sliding and fixpoint hangers.

Standard distance between suspension points for indoor and outdoor installations: 1200mm.

Expansion during temperature fluctuation The Expansion sections are required to compensate the different expansions between copper conductors and steel-or concrete structures, in varying temperatures without interrupting electrial power.

Anti-condensation sections

These sections are used for transfer of the Powerail to outdoor areas to avoid condensation.

Sectionalizing

Available as air gap version (5mm), where the collector carbon bridges the gap, e.g.for mains.


Company Contact:


  • Phone: 86-571-88913677

  • Address: Room308, Rencai Building 6#, Shiqiao Street, Xiacheng District, Hangzhou , 3/F Rencai Building 6#, China

  • Email: Email


Published date: October 12, 2019

  • Business Description: 1 - Lifting Equipments for Construction: Beam Launcher, Gantry Crane, Segment Lifter, Form Traveler, and Bailey Bridge etc.

    2 - Lifting Equipments for Industry: Overhead Crane, Gantry Crane, Jib Crane, Light Crane System.

    3 - Crane Components: Electric Hoist & Trolley, End carriage, Conductor Rail, Festoon system, Steel Rail, Flat cable, Pendent control, geared motor, remote control etc.
