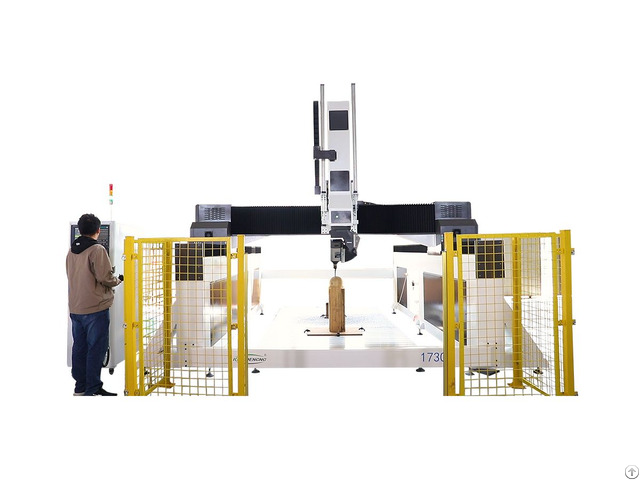

Five Axis Cnc Router Kit - China

The 5-axis CNC router accommodates the entire spectrum of industrial production.

This routing and milling machine is incredibly versatile and designed to handle even the harshest production requirements.

5-axis CNC router is manufactured with state-of-the-art components and technology to deliver superior performance, exceptional positioning accuracy, and rapid cutting speeds.

The real-time tool center point rotation and fully synchronized axes make this machine easy to use.

Process everything from marine and automotive parts to molded product trimming on 3D curved surfaces.

5-axis machining is faster, more accurate, and more adaptable than ever thanks to the 5-axis CNC router.

Contact our experienced team of professionals today to learn more.

5 Axis CNC Router Features of 5 Axis CNC Router: 1 - Deep-processing cutting off, grooving, carving and milling of all non-metallic material and soft materials with the most economical and reasonable method.

2 - Full automatic blade system of 4 service positions, which saves time and labor, cutter head cooling system is provided, so as to needs of processing various materials.

3 - Chinese industrial digital control system makes the function of processing three-dimensional curved surface realized, special hard disk with massive storage capacity and USB interface are also provided.

5 Axis CNC Router Applications: 1 - Relief sculpture and 3D engraving; Cylindrical object carving.

2 - Mold industry: wooden ship model, car model, wooden model aviation and many other wooden model.

3 - Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, interior doors, sofa legs etc.

4 - Foam industry: can carve and cut on any kind of foam with 2D and 3D dimension processing.

Processing effect: Engraving, cutting, milling, drilling, relief, shadow etc.

5 - Sculpture various large non-metallic mold can be particularly suitable for any kind of Foam (EPS) mould, wooden ship model, wooden model aviation and other wooden mould 3D processing.

What Is The Main Benefit Of A 5 Axis CNC Router? • More axes mean more capacities.

5 Axis allows cutting on any of the five sides of an object based on one setup.

Therefore, 5 axis cnc routers have the most possibilities than the 3 axis and 4 axis cnc routers.

(For example, 5-axis can perfectly machining cavity models, which is impossible for the other two.

) • Besides this, you will also get business benefits like faster machining, better accuracy, better finish, etc.

5 Axis CNC Router Center design: Simultaneous 5-Axis Machining with Tilting/Swivel Spindle The versatility of these machines has made it a top choice across metal cutting industries.

From its speed to its indexing flexibility, these Toyoda models deliver for multi-face and five-axis applications.

By adopting a tilt/swivel spindle, large workpieces can be easily loaded onto the pallet.

A turning axis on the spindle prevents workpiece weight from swaying, ensuring machining rigidity and accuracy.

5-Axis Machining Centers with Rotary and Trunnion Table Five-axis machining is achieved with a trunnion table.

Dual-drive mechanisms support heavy workpieces, while the high-resolution rotary encoders ensure precise positioning during simultaneous five-axis applications.

This 5 Axis CNC Router offers a large work envelope and a wide range of tilt angles on the A-axis from — 15° to 100° — to access difficult-to-reach workpiece features.

It comes standard with a 6, 000 RPM geared head spindle equipped with double row of cylindrical roller bearings that are located near the taper.

The large radial load capacity of these bearings make it possible to withstand heavy loads and powerful cuts.

5 Axis CNC Router Product Parameter Model iGW-5AM-2030

Type

Gantry moving 5 axis cnc router

Working area 2000*3000*1000mm

Table structure Cast iron or welded steel plate

Transmission Helical rack on X Y axis, Taiwan TBI ball screw for Z axis

Guide Rail Three axis #30 Taiwan guide rail

Tool Change 12 tool changes

Spindle Spanish akemd five axle head and 14.4-17KW spindle

Control System Taiwan SYNTEC control system

Servo Motor Japan YASKAWA
