High G Drying Shaker - China
price: contact company for price

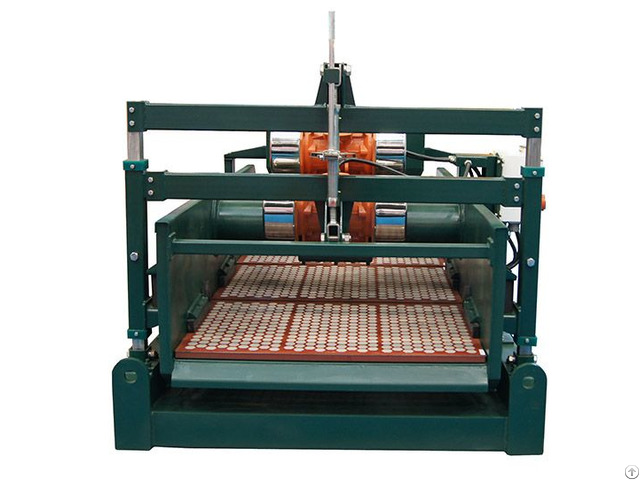

High G Drying Shaker
Waste Management
DC Hi-G Dry Shaker is a linear motion shale shaker, on the one hand, it is used to recover the mud from drilling cuttings of the main shale shaker and hydrocyclone, so as to reduce the mud waste and drilling cost;on the other hand, it makes the the liquid/oil content in the drilling cuttings to as low as about 10%(w/w), for the purpose of reducing environmental pollution.
1 - High G-force vibration intensity(adjustable as per working conditions);
2 - Make drilling cuttings more dryer;
3 - Weir type feed box is more applicable to on-site process;
4 - Fast drilling cuttings conveying speed and high handling capacity;
5 - Screen frame tilt angle can be adjusted from -1°~+5°;
6 - Wedge tensioning system ensures easy screen replacement; Hi-G Dry Shaker Technical Parameters
Model DCGZ585-4K
Vibrating Mode Linear Motion
Motor Power 2×1.94kW
Vibrating Strength 7.5G(adjustable)
Capacity 150 m3/h(660GPM)
Deck Adjustment -1°～5°
Electric Specs 380V/50HZ Or 460V/60HZ Or Customized
Certificate Exd BT4
Screen Quantity 4 panel
Screen Specification 585×1165mm, 200～300mesh
Screen Area 2.73 m2
Screen Type Frame
Dimension 2900×1700×1500mm
Weight 1800kg
Company Contact:
- Phone: 86-315-8153977
- Address: No.17 Xiao Cha He Industry Area FengNan District, Tangshan , Hebei , China
- Email:
- Website: https://www.dcsolidscontrol.com
Published date: August 22, 2018
- Business Description: Tangshan Dachuan Machinery Co.,ltd. is a company focus on the production, sales, after-sales, and maintenance service of petroleum drilling mud cleaning equipment and trenchless mud recovery system.
The main products are shale shaker, vacuum degasser, desander, desilter, mud cleaner, mud gas separator, mud agitator, centrifugal pump, shear pump, flare Ignition device, jet mud mixer, mud tank, water tank, diesel tank, vertical cutting dryer and ect.
