Hydraulic Extractor For Stop End Pipe Round Type 800 2800mm - China

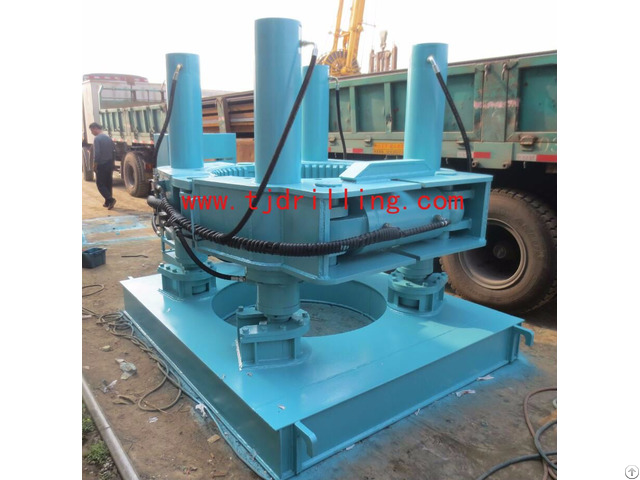

Hydraulic extractor for stopend pipe round stop end pipe size 800-2500mm we have two type diaphragm wall stop end extracor one is small type size from 600mm-800mm, another is large type size 800-2800mm hydraulic extractor has been designed for the extraction of stop end pipes from diaphragm wall foundation sunk to depths of up to 50/60 meters.

The clamp assembly it’s in 3 articulated segments, constructed to provide appropriate tolerance and grip on the casing tube.

the following is 1200mm one 2, TECHNICAL SPECIFICATION

NAME UNIT PARAMETER REMARK

LIFT CYLINDER QUANTITY PC 4 CYLINDER MAX STROKE mm 1000 HOLD CYLINDER QUANTITY PC 1 MAX HOLDER FORCE t 150 MAX CASING DIAMETER mm 1200 RATED LIFT FORCE t 400 BELOW 30MPa

WEIGHT kg 6100 OUT SIZE(L×W×H) m 3x2.2x2M TRANSPORT SIZE

HYDRAULIC POWER STATION MOTOR POWER STATION

MOTOR TRIPLE-PHASE ASYNCHRONOUS MOTOR

POWER Kw 45

SPEED rpm 1500

FUEL SUPPLY L/min 100

OPERATION PRESSURE Bar 300

OIL TANK CAPACITY L 850

OUT SIZE mm 1850*1350*1150

WEIGHT(NOT INCLUDE OIIL) Kg 1200
