Low Voltage Power Insulted Cable 0 6 1 Kv Iec 60502 1 - China

Basic Info

Model NO: NYY Material Shape: Round Wire Range of Application: Electricity Supply in Low Voltage System Certification: ISO9001, CE, CCC Brand: Jl Rated Voltage: 0.6/1 Kv Number of Core: 1-61 Refer Standard: IEC 60502-1 Class of Conductor: 2 Trademark: JL Transport Package: Wooden Drum/Steel Drum Specification: 1.5-630 mm2 Origin: Jiangsu, China HS Code: 8544492100 NYY CU/PVC/PVC Low Voltage Power Insulted Cable Construction:

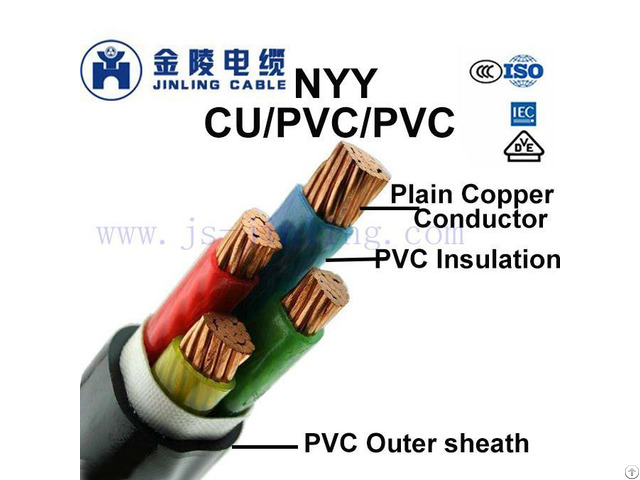

Solid or Stranded Copper Conductor, PVC Insulation, PVC Outer Sheath

NYY CU/PVC/PVC Low Voltage Power Insulted Cable Standard:

IEC60502-1

NYY CU/PVC/PVC Low Voltage Power Insulted Cable Application:

NYY cables are used for electricity supply in low voltage installation system, Iec 60502-1 cables are

suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching

stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

NYY Cu/PVC/PVC Low Voltage Power Insulted Cable Technical Data:

Conductors: Copper or Aluminium conductor, round solid (Class 1)or standed(Class2) copper wire

Test Voltage: 4000V

Working Temperature: -5-70 º C

Short-circuit max.

Conductor temperature: 160°C

Insulation resistance: 20 MΩ x km NYY Cu/PVC/PVC Low Voltage Power Insulted Cable Colour Code: Colour Code(1)

1 Core : Red or Black

2 Cores : Red, Black

3 Cores : Red, Yellow, Blue

4 Cores : Red, Yellow, Blue, Black

5 Cores : Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

Colour Code (2) :

1 Core : Brown or Blue

2 Cores : Brown or Blue

3 Cores : Brown, Black, Grey

4 Cores : Blue, Brown, Black, Grey

5 Cores : Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores: Black Cores with White numerals NYY Cu/PVC/PVC Low Voltage Power Insulted Cable Parameter:

Section Conductor Diameter Insulation Thickness Sheath Thickness Overall Diameter Cable Weight

No.

xmm² mm mm mm mm Kg/Km

Single Core PVC Insulated Power Cable

1x4 2.6 1 1.4 7.5 95

1x6 3.1 1 1.4 8 120

1x10 4 1 1.4 9 165

1x16 5 1 1.4 10 230

1x25 6.3 1.2 1.4 12 340

1x35 7.4 1.2 1.4 13 450

1x50 8.8 1.4 1.4 14.5 570

1x70 10.6 1.4 1.4 16 800

1x95 12.4 1.6 1.5 18.5 1070

1x120 14 1.6 1.5 20 1300

1x150 15.5 1.8 1.6 22 1600

1x185 17.4 2 1.7 24 1980

1x240 20.3 2.2 1.7 27 2560

1x300 22.7 2.4 1.8 30 3180

1x400 25.4 2.6 1.9 33 4060

1x500 28.8 2.8 2 37 5140

1x630 30.4 2.8 2.2 42 6600
