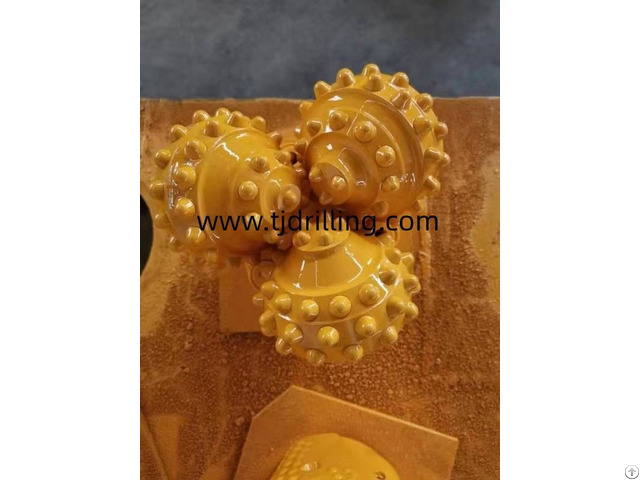

Mining Tricone Bit 6 1 4”iadc 545 Used For Coal Ore - China

6 1/4”mining tricone bit IADC 545 USED FOR coal ore Cutting structure : gauge rows and inner rows are conical type

Designed for soft formation with low compressive strength such as shale, soft limestone, dolomite with interlayers and coal ore Application 15000-23000 psi 100-158mpa

Shirttail protection hard metal on lug, wear resistant carbide on shirttail lip and lug

Product specification IADC ODEl545/524

Bearing type roller-ball-thrust button /sealed bearing Circulation type jet air Connection 3 1/2”API BIT DIAMETER 159MM 6 1/4

Product weight 20kgs

Weight on bit 125000-31250lbs

Rotary speed 110-80rpm

Air back pressure 0.2-0.4mpa
