Mining Tricone Bit7 7 8” Iadc 642 Used For Soft Limestone And Dolomite - China

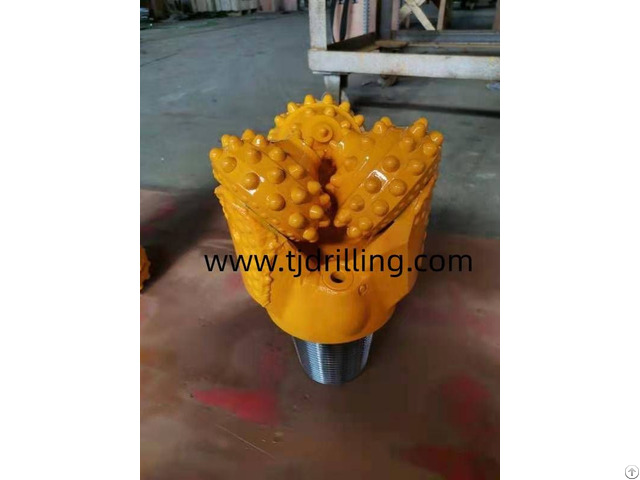

7 7/8”mining tricone bit IADC 645 USED FOR SOFT LIMESTONE AND DOLOMITE Cutting structure Gauge rows are ovoid type and inner rows are conical type Designed for medium hard and abrasive formation with high compressive strengths such as limestone, sandstone, dolomite and chert Application : 29000=38000psi(200-260mp a) Shirttail protection Two rows tungsten carbide on the shirttail, wear resistant carbide on the side of lug Product specification IADC CODE: 645/642 BEARING TYPE : roller ball roller, thrust button/sealed bearing/open bearing Circulation type: jet air Pin connection: 4 1/2”API Bit diameter: 200mm(7 7/8”) Product weight : 34kgs Operation suggestions Weight on bit: 23630-47250lbs Rotary speed 100-60rpm Air back pressure 0.2-0.4mpa
