Mud Cleaner - China

Mud Cleaner

Solid Control Equipment

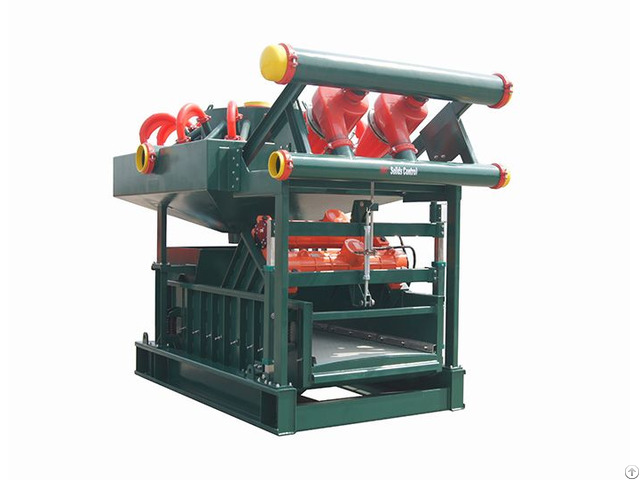

High Quality Mud Cleaner Mud Cleaneris the mud cleaning equipment combination of desander, desilter hydrocyclone and an underflow shale shaker.

(1)Compact structure, powerful function and small footprint area.

(2)The material of hydrocyclone use the wear-resistant special polyurethane.

(3)Underflow shaker equips the DC different model shale shakers.

(4)We can design and manufacture the different numbers of desander and desilter hydrocyclone for clients'requirements.

Mud Cleaner Parameters

Model DCQJ250×1/100×6 DCQJ250×1/100×8 DCQJ250×2/100×12 DCQJ300×2/100×16

Treating Capacity 90m3/h

396GPM 120m3/h

528GPM 240m3/h

1056GPM 300m3/h1320GPM

Separation Size 15-75μm

Desander Cones 10"(250)×1 10"(250)×1 10"(250)×2 12"(300)×2

Desilter Cones 4"(100)×6 4"(100)×8 4"(100)×12 4"(100)×16

Inlet Diameter DN150

Outlet Diameter DN200

Pressure 0.25～0.40MPa

Matching Pump DCSB5×4-12-22kW DCSB6×5-12-30kW DCSB8×6-13-55kW DCSB8×6-13-55kW

Matching Shaker Model DCZS850-2K DCZS700-3G DCZS630-3K Vibrating Model Linear Motion Motor Power 2×1.5kW 2×1.5kW 2×1.5kW Screen Qty 2 panel 3 panel 3 panel Screen Specification 850×1250mm×2 panel, 120～300mesh 700×1050mm×3 panel, 120～300mesh 630×1250mm×3 panel, 120～300mesh Screen Area 2.12m2 2.2 m2 2.36 m2 Screen Type Steel Frame Hookstrip Steel Frame Electric Specs 380V/50HZ or 460V/60HZ or Customized EX Standard Ex dⅡBT4
