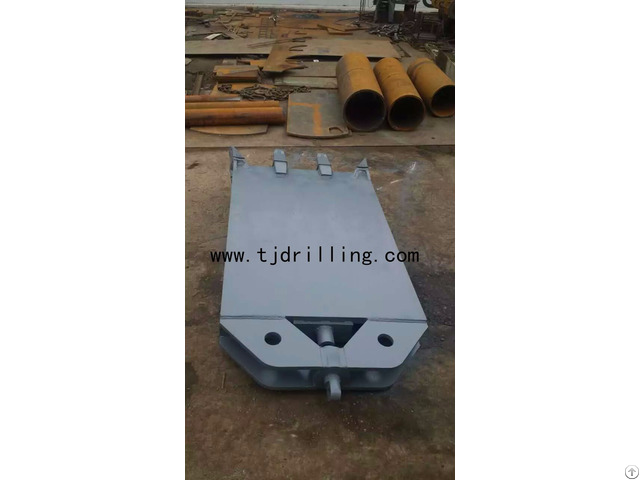

Pile Rectangular Chisel 600mm 3000mm For Piling Foundation Work - China

Pile Rectangular chisel 600mm-3000mm for piling foundation work Chisels with tangential cutting bit for rock with a compressive strength of not more than 1500

Cross cut Chisel | Rectangular chisel kg/cm ².

Diaphragm wall chisel cutter Casing size mm Diameter mm Height mm Weight 640 530 3000 1550

700 590 3000 1870

750 640 3000 2020

800 690 3200 2280

880 770 3200 2455

900 770 3200 2600

1000 890 3200 2950

1080 970 3200 3200

1100 970 3200 3550

1200 1070 3500 4880

1300 1190 3500 5000

1500 1370 3500 5320

1800 1640 3500 7650

2000 1840 4000 8900

2500 2220 4000 13250

3000 2700 4000 16500
