Sandwich Roof Wall Tiles Forming Machine - China

This line can be set according to customers" need, length is positioning controlled by computer.

It can be exactly positioned, and shown timed on the touchscreen, as well as automatically count and revise.

This line suitable to process outer side of sandwich panel, materials sheet are colored steel sheet, aluminium steel sheet, stainless steel sheet and so on.

The inner side materials are flame retardant EPS, rock wool and so on.

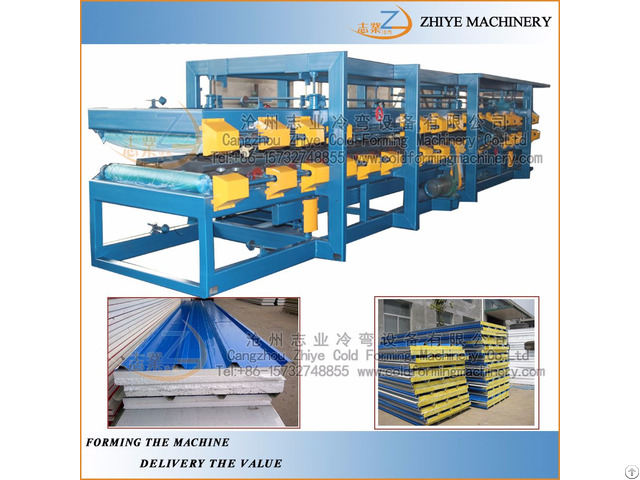

Multifunctional colored steel sandwich panel producing line

This line adopts advanced technique, which integrates gas, electricity and machinery, and this line is the special equipment for processing colored steel sandwich panel.

Its working speed can be adjusted by frequency converter, and it can process sandwich panel at one time.

The whole line consists of decoiler, molding core, compound part(knocking our the groove, glue instillment, heating, compound, rolling, grooving, finishing, air-powered, automatically cutting).

It is a necessary equipment for producing industries factories, roof tile and wall panel of warehouse.

Technical parameter of product line:

Voltage:

380V/50-60Hz

Power:

32kw

Productivity:

0-4m/min

Material with:

1000mm, 1200mm

Material thickness:

50-250mm

Annual output:

600, 000m2 Packaging & Shipping:

1, We have professional technicians for loading Guaranteed the goods load into container without any damage.

2, Nude, with waterproof cloth and stow-wood.

Imported computer control system packed with waterproof cloth and card board.

3, 30 working days after received the deposite Our service:

We provide the technical support for whole life.

Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.

When need the technician to go abroad, we will arrange the technician.

But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $150/days Tel: +86 18833785938
