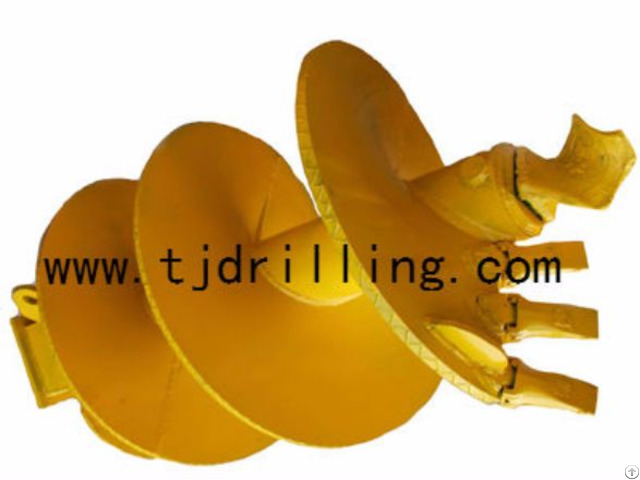

Single Cut Soil Auger - China

single cut soil auger, drilling auger

Main application soft to stiff silt and clay, loose to medium dense sand, gravel SB-2 is recommended for uncased bores or for bigger diameters Features Kellybox 200 mm

Diameter

(mm) Height

(mm) P

Pitch

(mm) Bullet teeth NO.

Φ600 1850 400 10

Φ800 1850 400 12

Φ1000 1850 500 14

Φ1200 1950 500 15

Φ1500 1950 500 18

Φ1800 2550 600 29

Φ2000 2550 600 34

Φ2200 2550 600 38

Φ2500 2550 600 48
