Spiral Sand Washing Machine - China

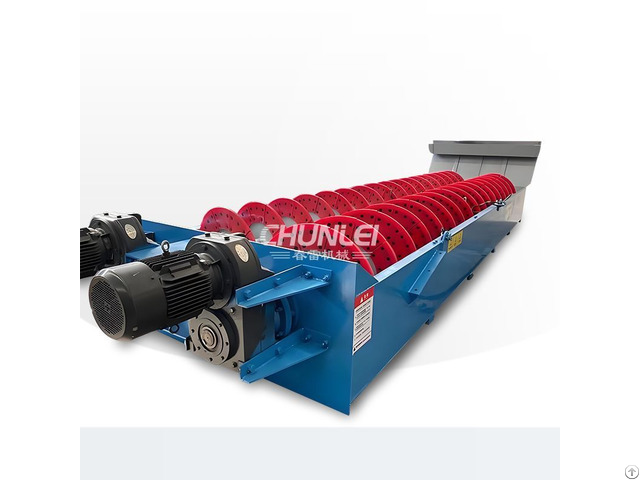

Spiral Sand Washing Machine

The "cleaner" in the sand and gravel is mainly used to remove dirt, dust and other impurities from the sand and gravel.

The spiral sand washing machine has a strong ability to break and disperse small mud balls, and the cleaned sand and gravel are relatively clean.

Feed size: < 10mm

Motor power: 5.5-44kw

Processing capacity: 30-240 tons Spiral Sand Washing Machine

Spiral sand washing machine is a kind of sand washing machine.

It is used with sand making machine and plays an important role in sand making plant.

It mainly stirs the sand and gravel materials through the spiral blades, so that the mud and impurities are mixed with water to realize the cleaning and screening of sand and gravel materials.

It can be made into single screw type and double screw type.

Working Principle

The spiral washing machine is generally installed at an angle.

When it is working, the spiral begins to rotate under the action of the motor.

The sand and gravel enter the cleaning tank from the feed tank, are turned over and collide with each other under the driving of the spiral, and are then removed.

The impurities on the surface of the sand and gravel also destroy the water vapor layer coating the sand to facilitate dehydration.

The sand and gravel move from high to low under the drive of the spiral and the action of its own gravity.

The clean sand and gravel enter the discharge chute from the rotation., complete the cleaning effect of sand and gravel.

Company Contact:

• Posted By: Zhengzhou Chunlei Machinery Manufacturing Co., Ltd.

• Phone: 13783551262

• Address: No. 593, 21st Floor, Shenglong Youyicheng, High-tech Zone, Zhengzhou City, Henan Province, henan , china , China

• Email:

• Website: https://www.miningmachinerys.com/

• Business Description: Zhengzhou Chunlei Machinery Manufacturing Co., Ltd. is located in Mazhai Industrial Park, Erqi District, Zhengzhou City, Henan Province.

  The company covers an area of 20,000 square meters.

  It is a one-stop comprehensive service provider for mine design, manufacturing, installation and EPCO.
