Step Glazed Tile Forming Machine 840 - China

price: 7000.00 Dollar US$

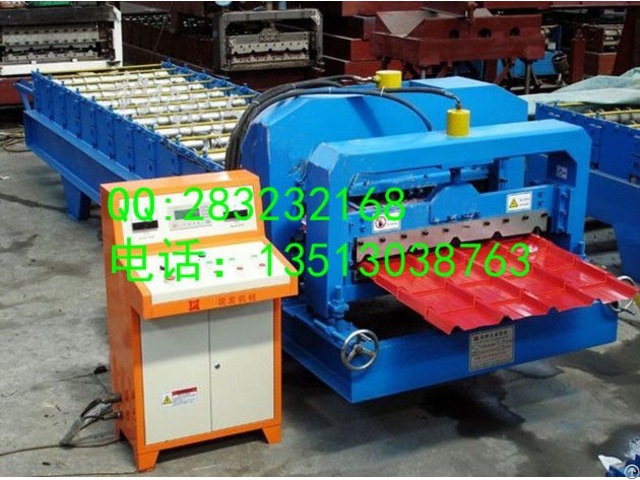

Step Glazed Tile Forming Machine 840

Products Photos Catalog Step Glazed Tile Photos Catalog

1 suitable material: PPGI, GI

2 Width of the plate：1000mm

3 Rows of rollers：11 stations

4 Size: 5.8M(L)*1.3M(W)*1.2m (H)

5 Main motor power: : 3KW 4# reducer 6 Thickness of raw material: 0.3-0.8mm

7 Productivity : 8~12m/min

8 diameter of shaft: ￠70mm

9 Weight: About 2T

10 Voltage: 380V 50Hz 3phases

11 Middle Plate Thickness 14MM

12 - Press Mould: Use press mould for step


Company Contact:


  • Phone: 0086-13513038763

  • Address: Development Zone,BOTOU,China, BOTOU , HEBEI , China

  • Email: Email


Published date: May 22, 2020

  • Business Description: steel for construction .

    such as guard rail roll forming machinery series , cable tray roll forming machinery series , C&Z purline roll forming machinery series , wall and roof panel roll forming machinery series , and so on .
